30w Poe

With the support of our expert, our company is dedicated Exporter, Manufacturer & Supplier of 30W PoE in Beijing, Beijing, China.

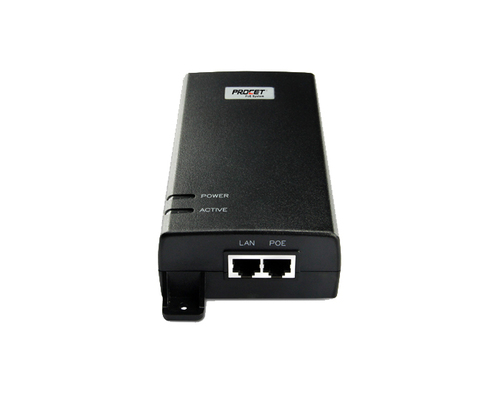

PSE100G-24 PoE Injector
Standard
1. Output: 24VDC/1.0A, 24W
2. Power Pin: 4/5(+), 7/8(-)
3. Transmission Rate: 10/100/1000Mbps
1. Single-port Midspan
PROCET's PT-PSE100G-24 is a single-port gigabit Midspan (PoE injector) offers a cost effective, economy power supply solution for IP phones, WLAN access points, network cameras and other IP terminal installations.
2. 24W power output
PT-PSE100G-24 providing a maximum of 24 watts of power through each port and ensuring safe operation of any standard PoE data terminal
3. Plastic case & power plug integrated design
PT-PSE100G-24 the plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
1. Input voltage: 100VACi 240VAC,50Hzi 60Hz
2. Output max power: 24W
3. Output Current: 1.0A
4. Output voltage regulation precision: 24VDCA 5%
5. Loading regulation: 24VDCA 1%
6. Working temperature range: -5a i +45a
7. Noise:<50dB
Standard
- IEEE802.3 10Base-T Ethernet
- IEEE802.3u 100Base-Tx Fast Ethernet
- IEEE 802.3ab 1000 Base-T Fast Ethernet
- RoHS Compliant
- WEEE Compliant,CE/FCC
- FCC Part 15,Class B
- EN 55022 Class B
- MTBF:100,000 25a

PoE Power output
- Power Pin: 4/5(+),7/8(-)
- Data Speed: 10/100/1000Mbps
- Output Voltage: 24Vdc
- Output Current: 1.0A
