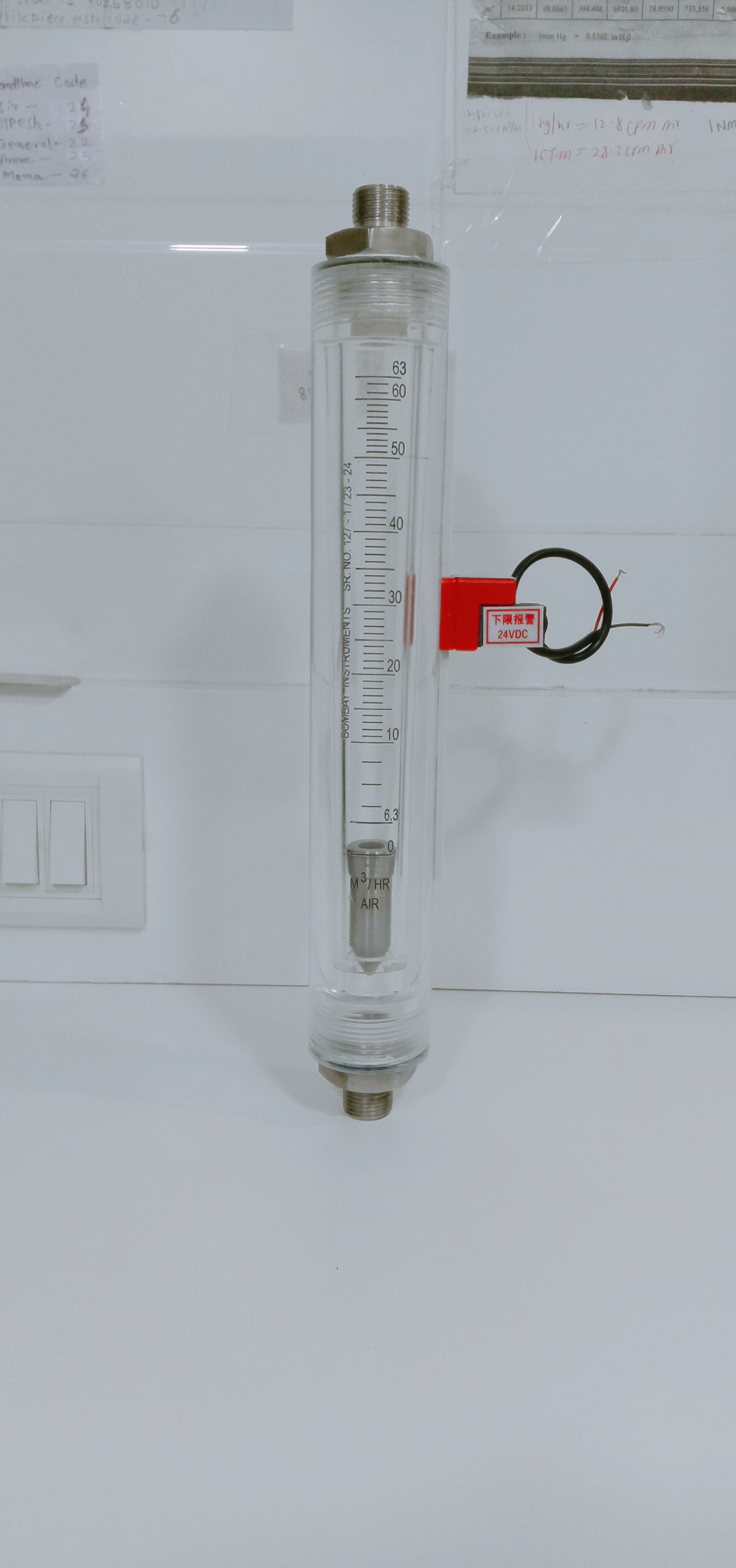

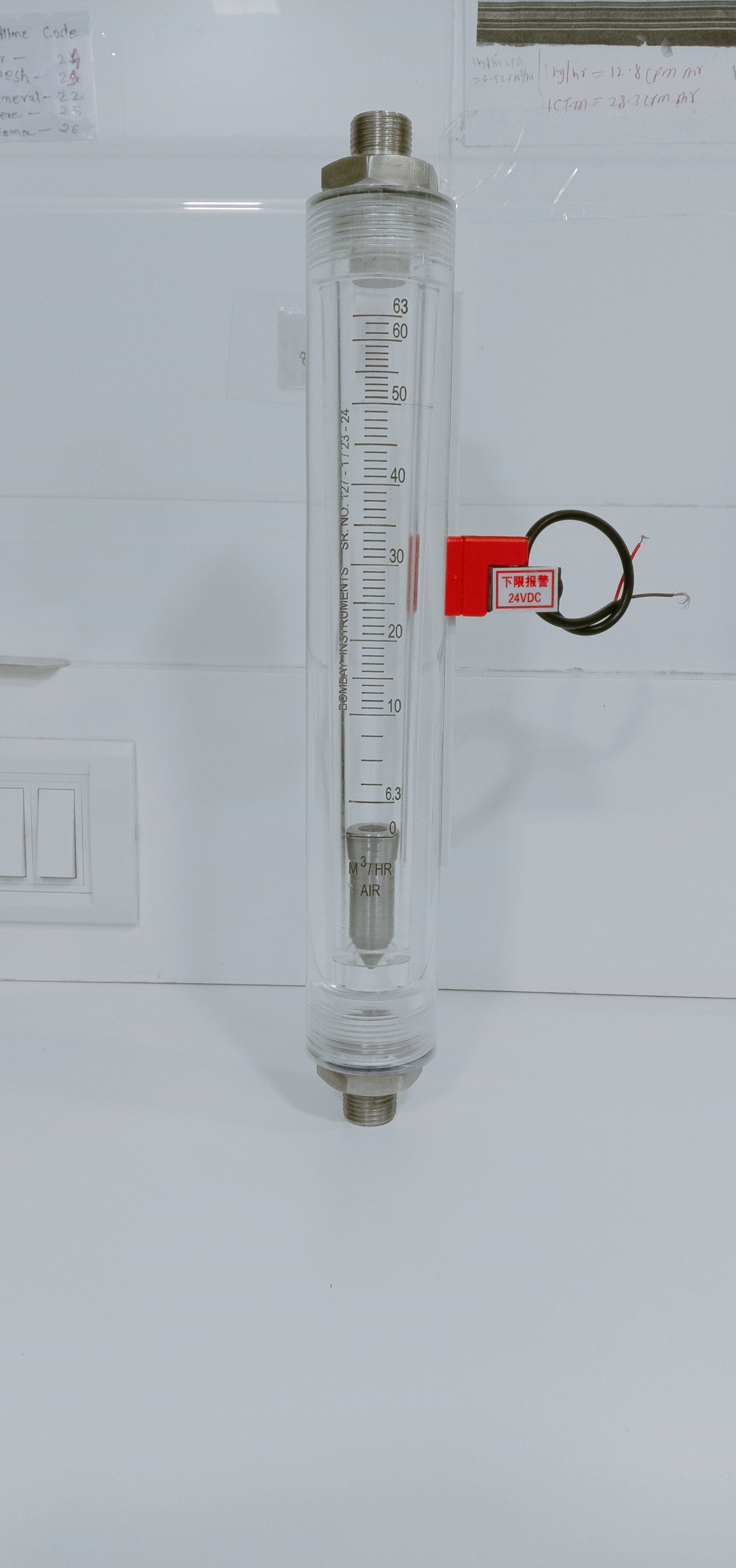

Round Body Rotameter With Alarm Switch - Material: Ss.304/ss.316/m.s/pp

ROUND/SQUARE BODY ROTAMETER WITH LIMIT ALARM SWITCH
MODEL NO. : FLO-SW-LS WITH ONE/TWO LIMIT SWITCH
End Fitting : PP/SS.304
Range : 0 to 1000 LPH ( As per requirement)
Connection : BSP Threaded
Service : Liquid/GAS
Make : BIMCO (Bombay Instrument)
Flow cut-off : Sliding Adjustable type over entire flow range
Switch type : Upper alarm & Lower alarm
Output : 1 NO+1NC, latching switch std (select A or B position AS FOLLOWS)
Mounting : Vertical direction
Flow direction : Bottom to Top
Max. Voltage : 24 Vdc
Max. Currant : 0.5A
Switch Position : Select any one - Standard OR both can given -Optional
A) If using the upper alarm,
when the float is below the switch The switch will be "NO,
When the float is above the switch, the switch will be "NC
B) If using the lower switch,
when the float is below the switch . The switch will be be "NC
When the float is above the switch, The switch will be be "NO
C) Your system will provide with both position A & B .
So if the flow range will go beyond or below set flow range ith will give signal NO
& if flow range Within upper & lower set flow it will give signal NC OR vice versa also possible.
