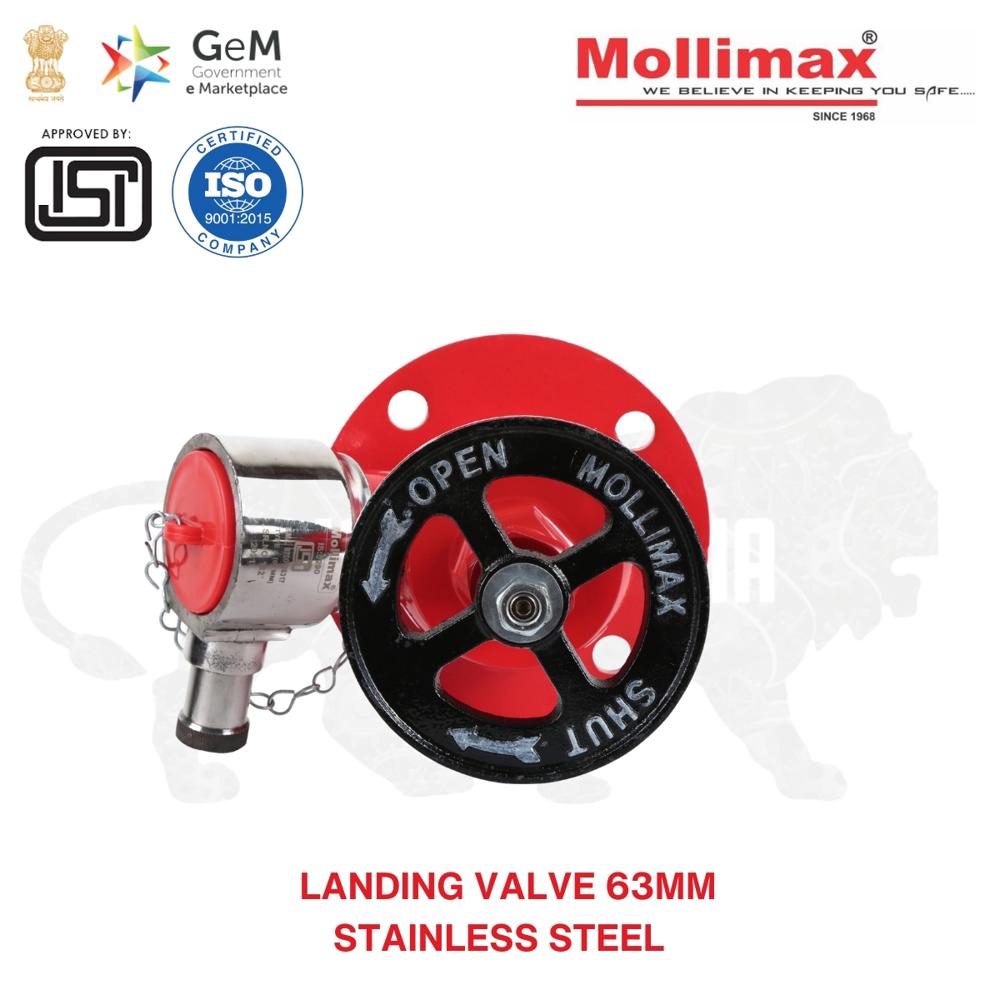

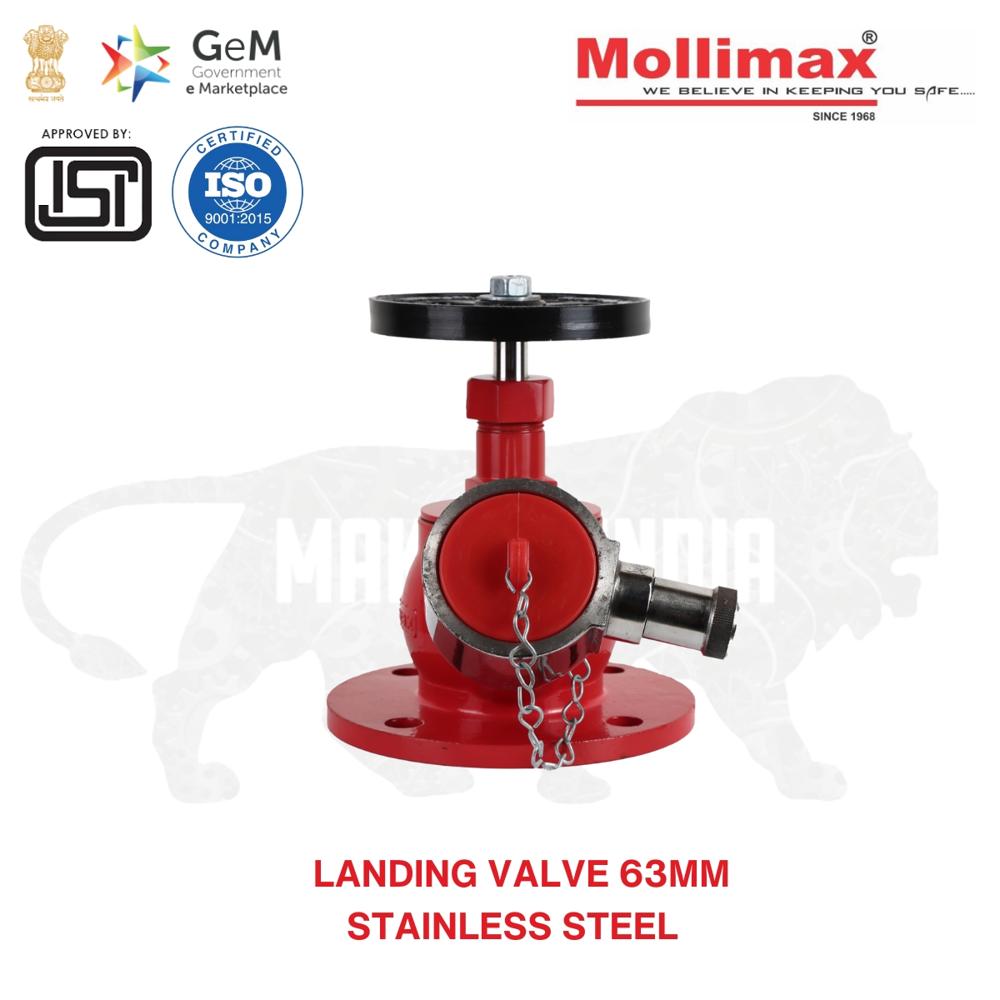

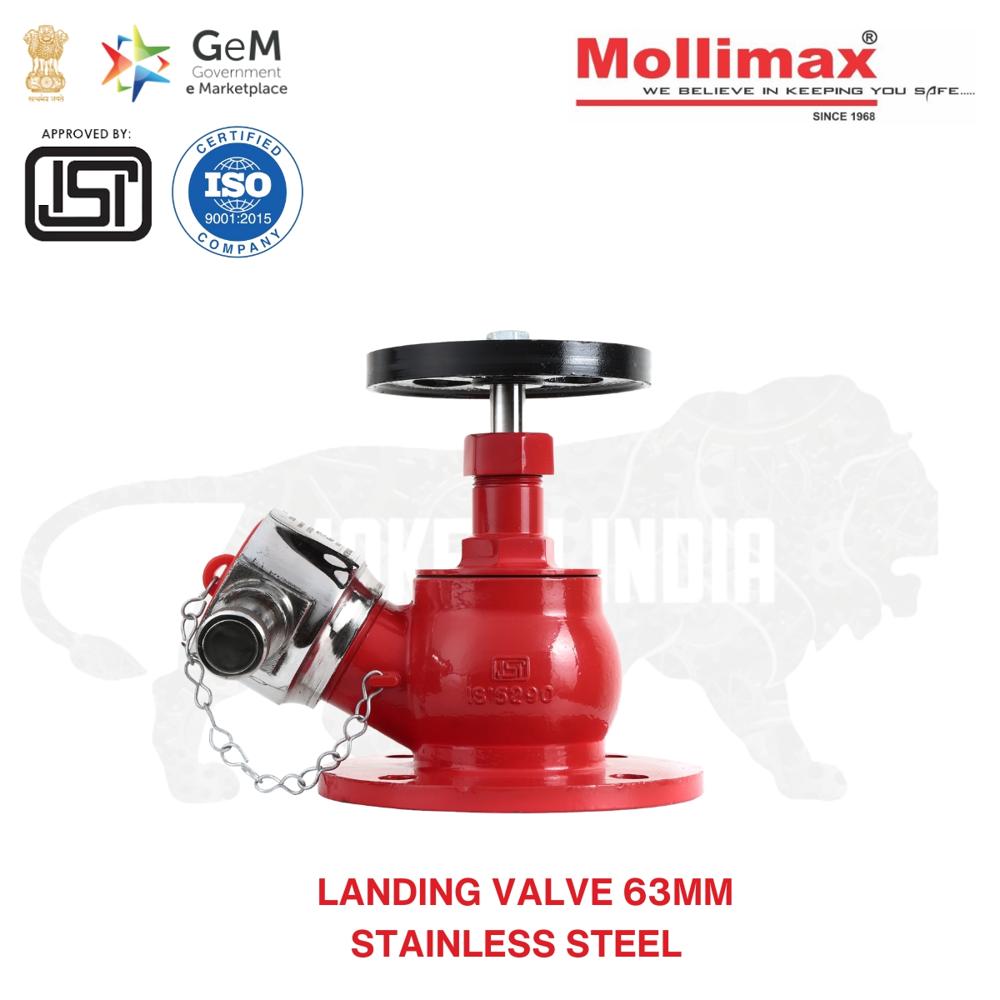

Single Headed Hydrant Valve - Stainless Steel, 75/80mm Inlet, Red Color | High Pressure Resistance, Leak-proof Design, Easy Operation, Isi Marked

Mollimax

SINGLE HEADED & DOUBLE HEADED HYDRANT VALVE

Features

Landing Valve manufactured in accordance with IS 5290 Type A & Type B

Available in both the material Stainless Steel and Gun Metal

Approval from Bureau of Indian Standards - ISI Marked

Inlet 75/80 mm with 63 mm size one nos. female outlet instantaneous coupling (Type A)

Inlet 100 mm with 63 mm size two nos. female outlet instantaneous coupling (Type B)

Body is Red Painted and the Hand wheel is Black Painted

Female Instantaneous Outlet is supplied in Polished Finish and free from burs and porosity


Performance Data

* BIS Specification: IS: 5290 Type A

* Type: Single Headed Oblique Type Landing Valve

* Body: Stainless Steel IS:3444 & Gun Metal IS:318 LTB-2

* Hand Wheel: Cast Iron IS: 210

* Intel: 75/80mm NB Flanged Inlet

* Outlet: 63mm Instantaneous coupling with Pull out type lugs/Quick
Release Lugs

*Material: Stainless Steel & Gun Metal

*Size: 63mm/2.5 inch

*Performance Test: Hydrostatic Test (Body Test): Tested at 21 kgf/cm Water
Tightness (Seat Test): Tested at 14 Kgf/cm Flow Test: Min. 900
LPM discharge at 7 kgf/cm

*Flange Drilling: 75 NB 3" (OD-200mm, PCD-160mm, 4 Holes 19mm)

*Approvals : ISI MARKED
