Fiber Optic Cables

Fiber Optic Cables

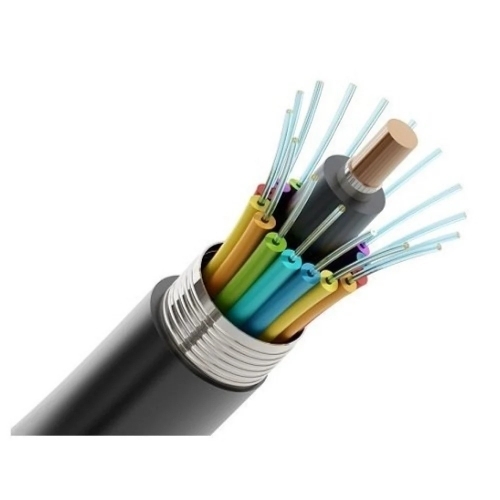

Fiber Optic Cable is a network connection cable specially designed for establishing broadband connections communication channels surveillance and mobile telephony connections. These cables are designed for super-quick transmission of signals. When compared to other typical metal patch cables Fiber Optic Cable has more bandwidth and data-carrying capacity. Light pulses flow through transparent glass or plastic strands to convey information.

These pipes encircle with cladding likewise constructed of plastic or glass but have a different density than the inner strand. It also features a buffer tube and an exterior jacketing surrounding the cladding.

Fiber Optic Cable Types

Modes are just the route that a light beam follows along with fiber. One mode runs straight along the center. Another might bounce down the fiber at unusual angles. Other types of light bounce down the fiber at different angles.

There are two types of cables that are often useful:

Single-mode

Single-mode cables intend to transmit light straight down the fiber. It is a single glass fiber strand of 8.5-10 microns in diameter. It will send at 1310 or 1550 nm since it only has one mode of transmission. Single-mode patch cords provide a larger bandwidth than multimode fiber but they need a light source with a narrow spectral breadth. The single-mode has a greater transmission rate and may go up to 50 times further than the multimode. A single-mode cable's core is smaller than a multimode cable's core.

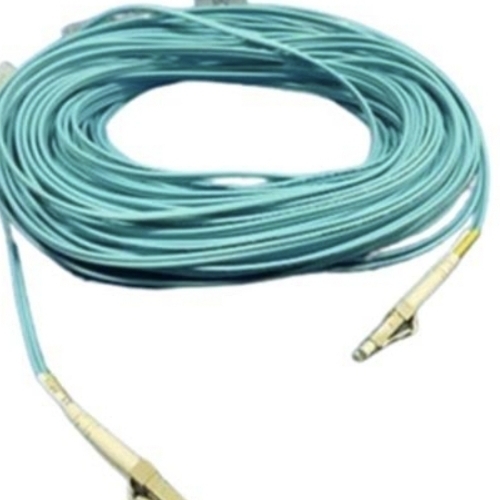

Multimode

The light carrying component of multimode patch cables has a larger diameter generally 50-100 microns. Multimode fibers provide large bandwidth at fast speeds across medium distances. Light waves are divided into various routes or modes as they pass through the core of the cable which is generally 850 or 1300nm in wavelength.

Multiple cable pats may distort the receiving end of the line runs longer than 9144 meters resulting in an unclear and incomplete data transfer. Multimode cables are "domestic" fiber since they are helpful for local-area networks such as FTTH. Multimode Ethernet may achieve speeds of up to 100Gbps.

Fiber Optic Cables are known for faster transmission of signals which is the reason it is used in internet broadband mobile phones satellite television surgery and dentistry surveillance and various other applications. The cable is known for durability accurate signal transmission superior insulation from the external environment and seamless signal output.

The range of cable is available in bulk at Tradeindia. Buyers looking forward to buying Fiber Optic Cables in bulk quantity should send all their inquiries to us. They are assured of getting the best deals here at unbeatable prices.

FAQs:

What is the difference between the two types of fiber optic cable?

Multimode and single-mode fibers are the two types of fiber cable available. Multimode fiber may carry many light beams (modes) simultaneously due to the different optical properties of the core. Light traveling the shortest distance (along the center) travels the slowest.

What characteristics distinguish an excellent fiber optic cable?

Fiber optic cables have a greater capacity. The amount of network bandwidth that a fiber cable can transport dramatically outnumbers a copper connection of comparable thickness. Fiber connections with speeds of 10 Gbps 40 Gbps and 100 Gbps are standard.

How can you tell if a fiber optic cable has been damaged?

If you believe you know which cable is faulty you may do a fast and simple test on yourself using a laser pointer or a strong flashlight. Put a flashlight or laser pointer into one end of the cable; if no light comes through the other end the line is damaged and must replace.

How can you detect if a fiber optic cable is defective?

If there is a lot of red light the connection is faulty and should replace. If you look from the other end and see the light coming from the fiber you have proper connectivity. It's a terrible sign if the whole ferrule illuminates. If the cable is long enough OTDRs can detect the faulty connection.

What is the maximum length of a fiber optic cable?

OS1 fiber optic cable intends for use in premises with a maximum distance of 2000 meters and transmission rates ranging from 1 to 10 gigabit Ethernet. OS2 fiber optic cable designs for longer transmission lengths of 5000 to 10000 meters with transmission speeds ranging from 1 to 10 gigabit Ethernet.
