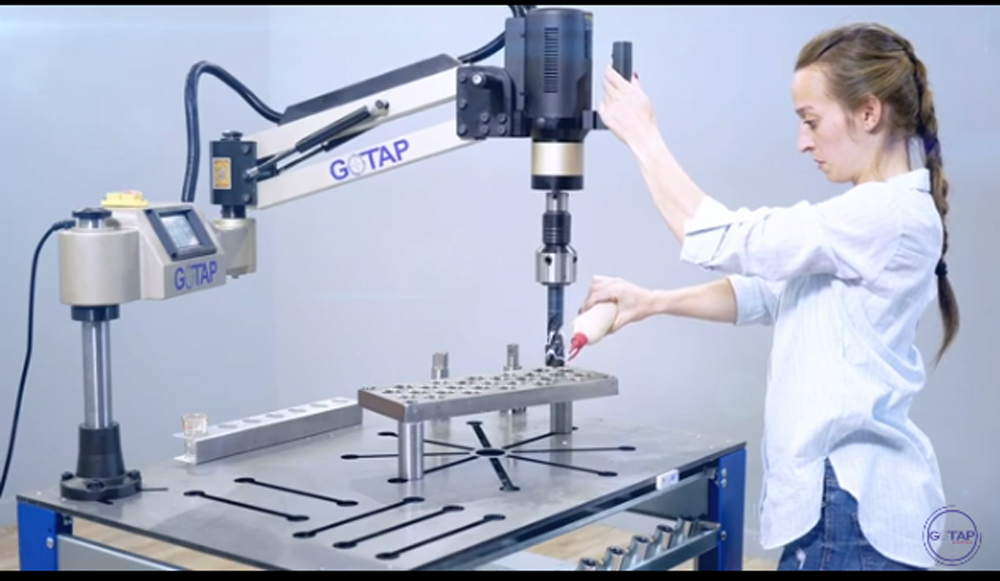

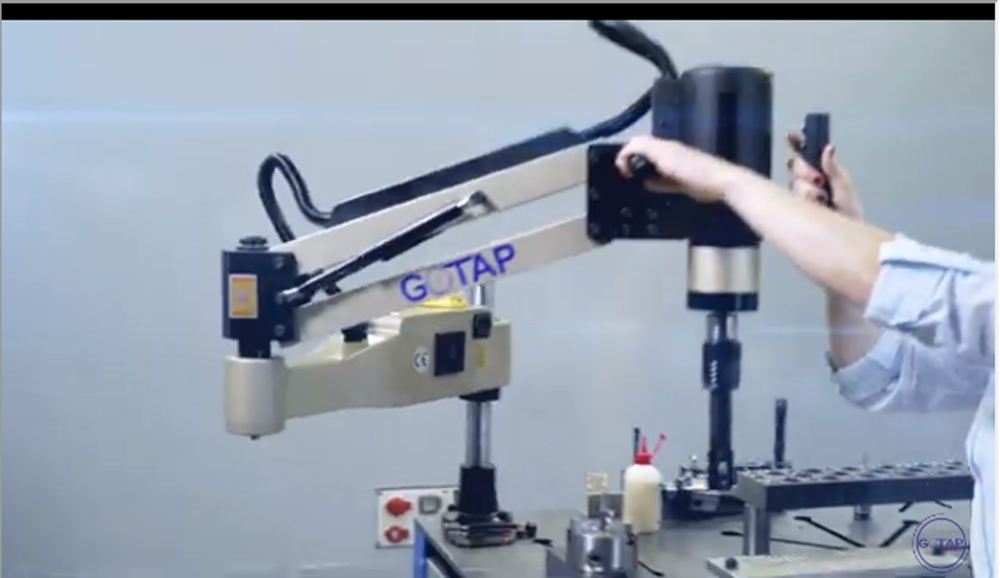

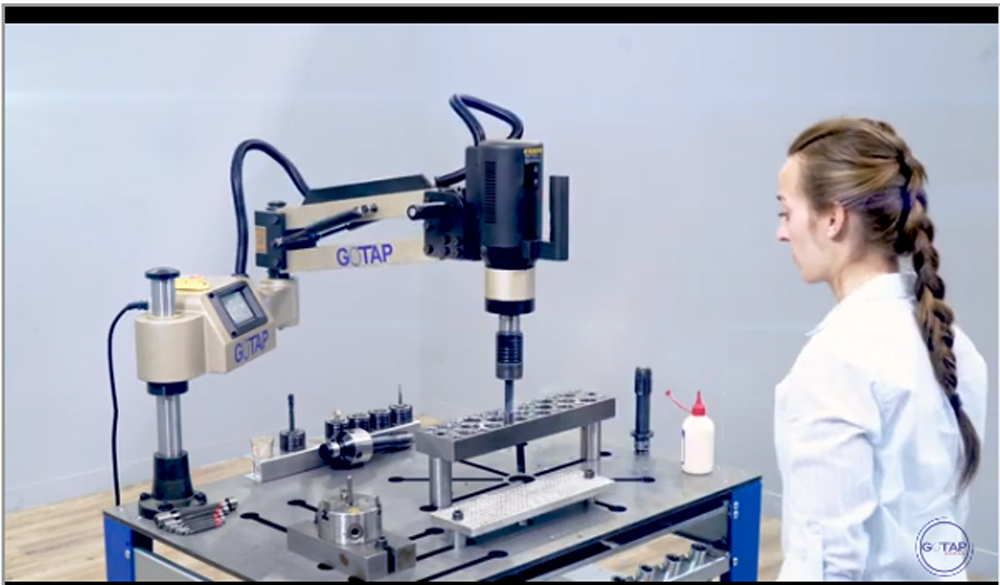

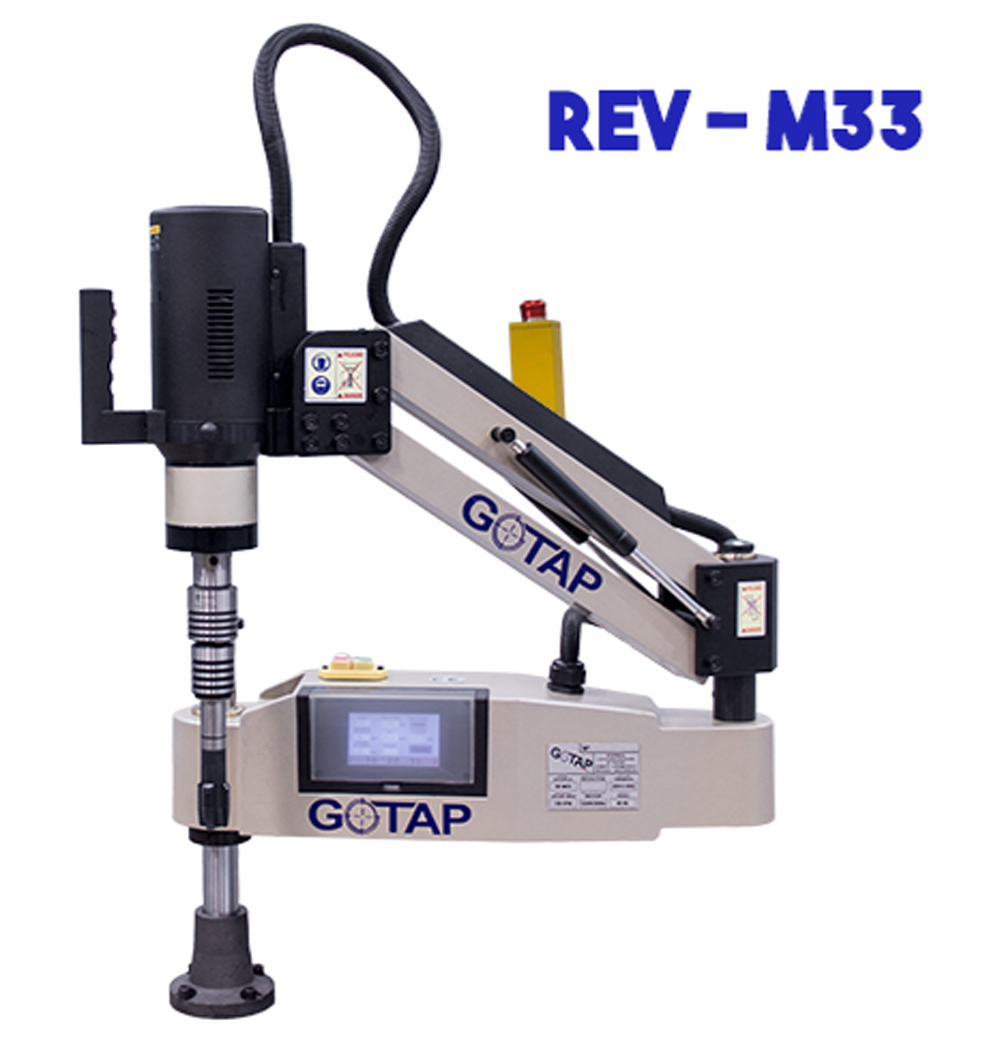

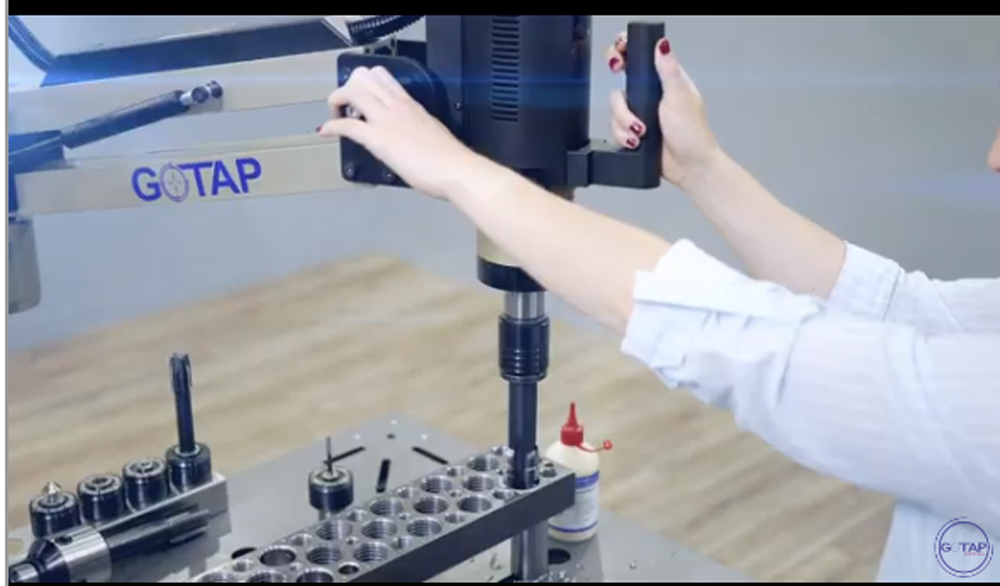

1200 Watt 360 Nm Torque Automatic Electrical Tapping Machine Vertical Model Rev M33 Model - Color: Silver

Tapping capacity:
M8 - M33 (stainless steel, hard or sticky steel)
M8 to M36 (normal steel, aluminium)
Rotational speed: 0 155 RPM
Work area: REV 1180 mm, REO 1185 mm.
Height adjustable 520 + 460 mm.
Voltage: 220-230V 50hz optional 110V 60hz
Consumption: 1200W
Torque: 360 Nm
Weight: 44 kg (REV), 45 kg (REO).

Standard equipment:
Touch screen control panel - digital program in
English or Spanish + manual tapping + automatic
tapping + depth measurement + thread counter +
+ step tapping + torque control
Servo-motor and driver integrated in threading arm
Quick change chuck 31
Reinforced duraluminium swing arms
Table mounting column

Optional equipment:

T-slotted table 900x600mm - With 2 drawers and
cupboards
Multitasking table with mooring elements,chip
collector tray, and shelf
Portable magnetic base 600 kg.
Higher table mounting column 1000 mm.
Case with 6 tap adapters with clutch for M30,
M24, M20, M16, M12, M10.
Tapa adapter with safety clutch for taps in metrics,
BSP, BSW, UNC, UNF, NPT EN NORMA DIN O ISO
