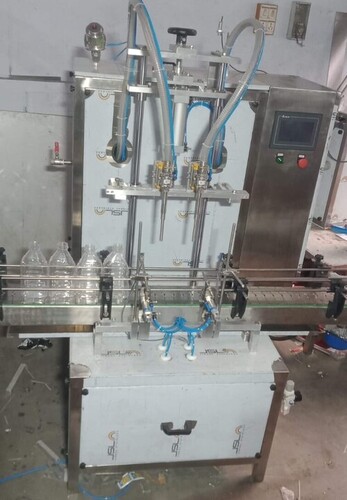

Automatic Adjustable Oil Filler 200 Ml To 5 Litre - Capacity: Up 80 Bottle Pcs/min

Alfa Industries proudly presents the Automatic Adjustable Oil Filler (200 ml to 5 Litre) a an advanced, high-speed filling solution designed for flexibility, accuracy, and long-term performance. Perfect for both edible and industrial oil applications, this machine is capable of efficiently filling a wide range of container sizes, from 200 ml up to 5 litres, without compromising on speed or precision.

This machine is equipped with servo motor-driven piston filling technology and a PLC-based control system, allowing precise volume control, minimal wastage, and consistent output. Its adjustable settings make it highly suitable for companies handling multiple product sizes. Made with SS 304/316 food-grade stainless steel, it ensures hygiene, durability, and compliance with industry safety standards.

Ideal for filling mustard oil, groundnut oil, sunflower oil, lube oil, hydraulic oil, and similar liquids, this machine is a reliable asset for medium to large-scale manufacturers aiming to boost production and efficiency.

Key Features:

Servo motor-based piston system for accurate and smooth filling

Fully automatic operation with PLC & HMI touch screen

Wide filling range: 200 ml to 5 litres (adjustable)

Drip-free, non-zzles for clean operation

Suitable for PET, HDPE, glass, and tin containers

Built with SS 304/316 contact parts for hygiene and durability

Available in 2, 4, 6, 8, or 10-head configurations

Quick changeover between different container sizes

Low maintenance and energy-efficient design

Designed for both edible and industrial oil packaging

Technical Specifications:

Filling Range: 200 ml to 5 Litres

Filling Speed: Up to 60 containers per minute (depending on product and container)

Accuracy: A 0.2% with servo motor control

Power Supply: 3 Phase, 415V, 50Hz

Air Pressure Requirement: 6a 8 Bar

Construction Material: SS 304/316 (for all contact parts)

Control Panel: PLC with Touchscreen HMI Interface
