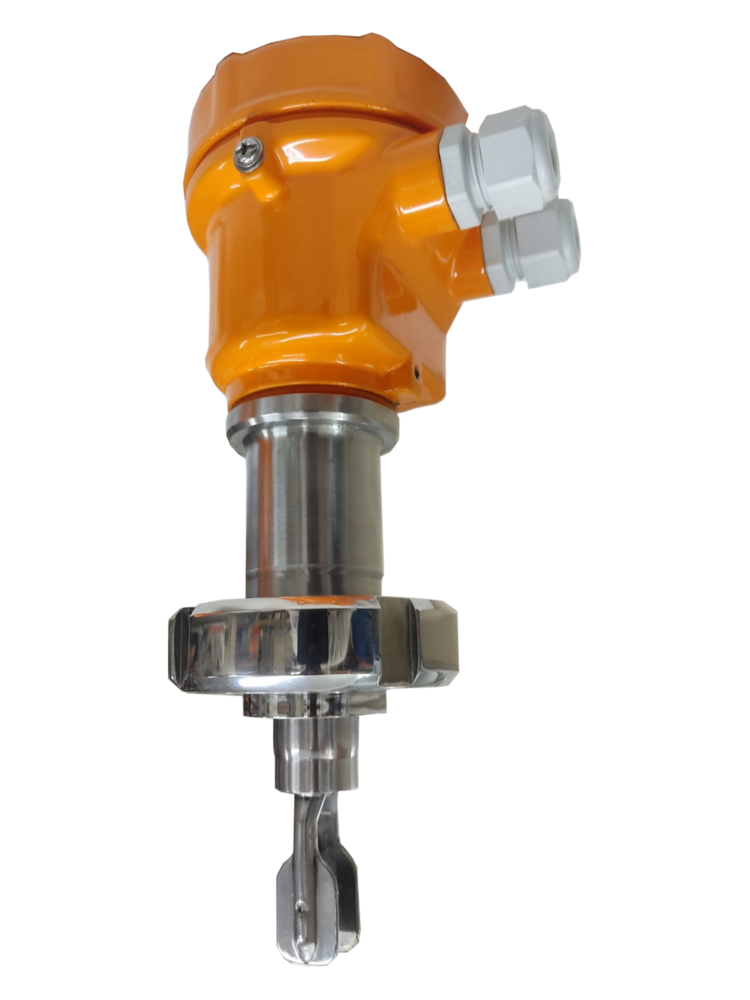

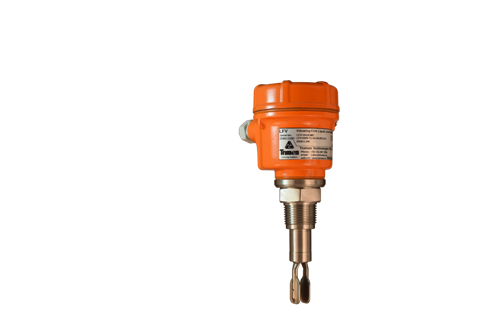

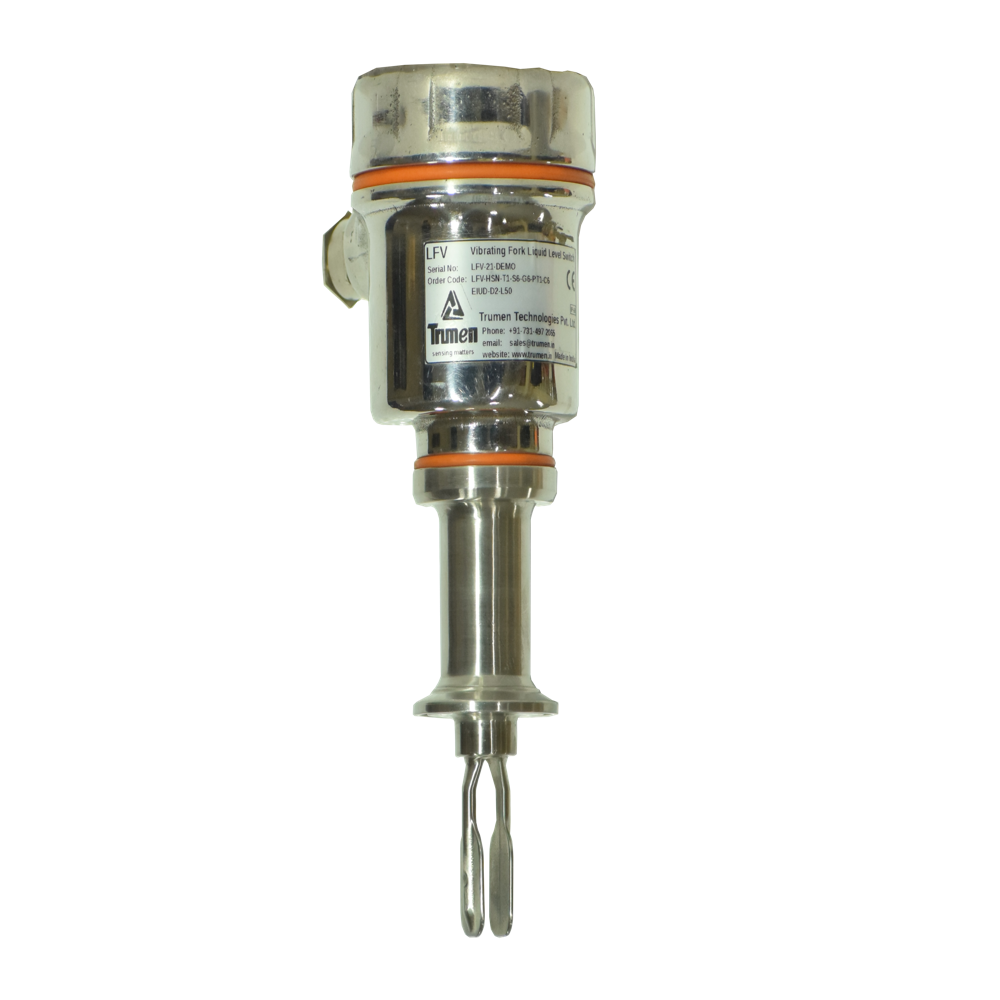

Chemical Industries Level Sensor - Cable Length: 10 Meter (M)
Price: 21830.00 INR / Piece
(18500.00 + 18% GST)
Get Latest Price
Weight :
300.00
1 Pack Contains :
1
Minimum Pack Size :
1
In Stock
Product Specifications
| Output | 4-20mA Loop powered, Error output 21mA |
| Product Type | Level Sensor |
| Input | 14-60 VDC |
| Usage | Industrial |
| Warranty | 1 Year |
| Material | SS |
| Features | Compact size Fast switching response 0.5 to 2 sec Low power consumption Calibration-less operation Durable Construction Immune to External Vibrations Suitable for side as well as top mounting Minimum and maximum failsafe field selectable External indication LED available NAMUR (L-H / H-L) as per IEC-60947-5-6 Ingress protection : IP 67/68 (as per IS/IEC 60529:2001) Process temperature max 250A C Process pressure max.20 bar 1/2" threaded mountings available Threaded / flanged / customized process connections Remote electronics with standard 10 meters cable length |
| Sensor Type | Vibrating Fork type |
| Mounting Type | Top/Side |
| Measurement Range | 50mm to 3,000mm |
| Cable Length | 10 Meter (m) |
| Operating Temperature | -20 to 80A C |
| Response Time | 0.5 to 2 sec |
| Power Consumption | low power consumption |
| Wireless | No |
| Sensitivity | adjustable via DIP switches |
| Interface | internal electronic circuitry |
| Signal Type | Analog |
| Application | Water- Milk- Diesel- Edible Oil- Paints- WFI water- Chemical - Beverage |
| IP Rating | IP67 |
| Delivery Time | 1 Week |
| Supply Ability | 1 Per Week |
| Packaging Details | Corrugated Box |
| Weight | 300.00 |
| Gst | 18 |
| Unit | 1 |
| Unit Type | Piece/Pieces |
| Moq | 1 |
| Mrp | 21830.00 |
| Price | 18500.00 |
| Selling Price | 12300.00 |
| Brand Name | Trumen |
| Currency | INR |
| Packsize | 1 |
| Mop | 1 |
| Is Freight Charges | |
| GSTIN | 18% |
