Grt 0 Double Flank Gear Roll Tester

GRT 0 Double Flank Gear Roll Tester

GRT-0 For DFC checking of gears with bore. It is useful for process control to check the gears by m/c operators periodically

GRT-0: Gear roll tester for checking total composite error of gears with bore. The master gear & the component to be mounted on plain mandrels of appropriate sizes. Max module 2.5, Max gear PCD 220 mm (with master gear PCD 100 mm), max center distance between master gear & component mandrel 175 mm, min center distance 35 mm.

GRT- 0 (With Live Spindles): All other details same as per GRT a 0, but in place of plain mandrel, live spindle for master gear & component, min center distance 45 mm.

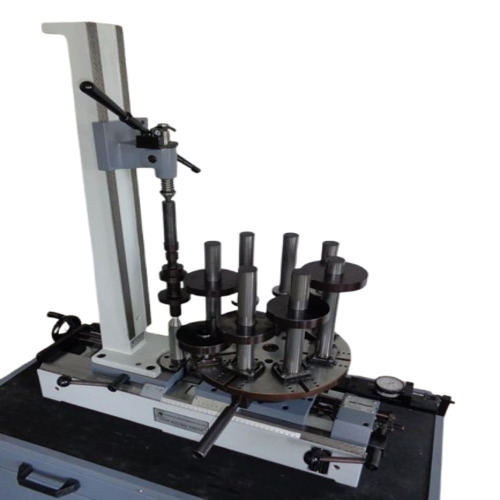

GRT- 0 CT: Gear roll tester for checking total composite error of Gears between centers. The master gear to be mounted on appropriate mandrel. The component to be mounted between vertical centers. Max module 2.5, max admit between centers 200 mm, max gear OD between centers 80 mm, max center distance between master gear mandrel& vertical center axis 125 mm, min. center distance 35 mm

GRT a 0 CT (With Live Spindle for Master Gear): All other details same as GRT-0 CT, but live spindle for Master Gear in place of plain mandrel, min center distance 45 mm.
