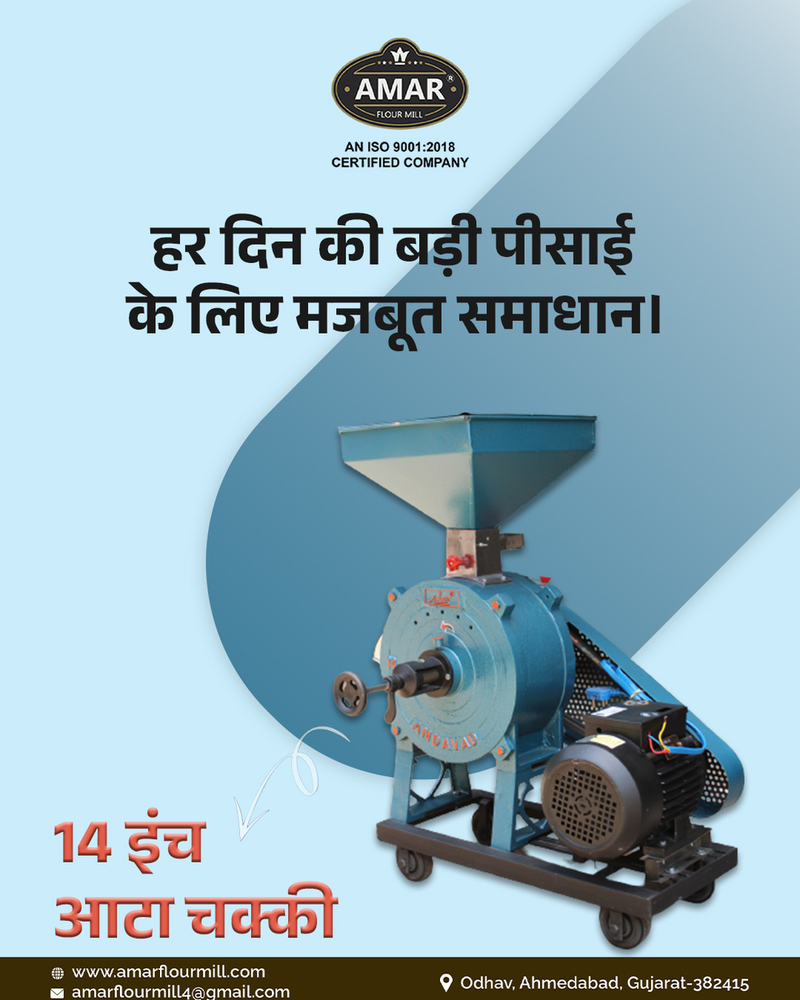

Cast Iron High Performance Regular Flour Mill

Being a customer centric organization, we are involved in manufacturing and exporting a supreme quality range of High Performance Regular Flour Mill in Ahmedabad, Gujarat, India.

Our company has the inclination to have sound business ties and will very much appreciate to receiving your valued inquiries. We are committed to render you better services with prompt attention at all the times.

We manufacture and supply a Range of flour mill machines, which are used in the grinding of wheat, spices, pulses, salt and all kinds of grains. These are developed to provide superior processing capabilities and deliver fine outputs in form of quality flour

Model No.A-101A-102A-103
Grinding Wheel Diameter10 Inch12 Inch14 Inch
Grinding Wheel Thickness44 mm75 mm75 mm
Electric Motor Capacity
(Single Phase)1.5 HP
1440 RPM2 HP
1440 RPM3 HP
1440 RPM

Power Consumption per Hour1.25 Unit1.60 Unit2.5 Unit
V-Belt SizeB-37B-46B-52
Shaft Diameter (EN-8)25 mm30 mm35 mm
Ball Bearing6205 Z (2 pcs.)6206 Z (2 pcs.)6207 Z (2 pcs.)
Grinding Capacity per Hour (On 230 valt)12 to 20 Kgs30 to 45 Kgs35 to 50 Kgs
