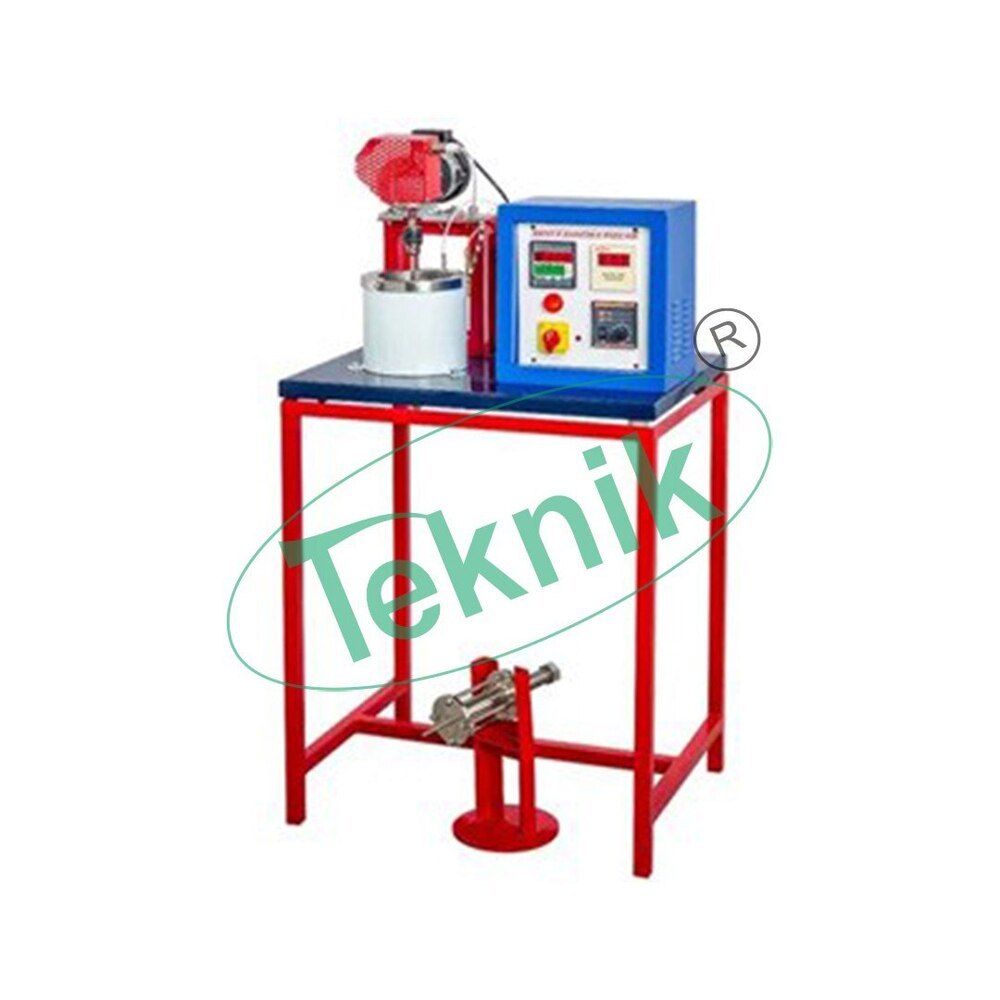

Kinetic Of Dissolution Of Benzoic Acid Apparatus - Stainless Steel Reactor (1-2 Ltrs), Variable Speed Agitator (0-150 Rpm), Double Wall Insulated Water Bath | Chemical Engineering Laboratory Equipment, Study Of Chemical Kinetics

Description
Present set-up consists of a reactor vessel fitted with variable speed agitator and detachable baffles. This unit is designed to study chemical kinetics. Reactants are fed to the reactor, using pump and flow is regulated and monitored by individual Rotameter. An adjustable overflow device is provided in the reactor to conduct the experiment on different reactor volume.
A Stainless Steel Coil is immersed in the reactor through which the hot water supply is circulated. Temperature of the hot water is controlled by means of Temperature Controller and it enables the students to enhance the experimentation capabilities
Experimentation/Learning Objectives
To study the chemical kinetics.
To study the effect of residence time.
To study the effect of mixing speed.
To study the effect of temperature on chemical reaction.
Utilities Required
Electricity Supply: Single Phase, 220 V AC, 50 Hz, 5-15 Amp combined socket with earth connection. Earth voltage should be less than 5 volts.
Water Supply
Floor Drain.
Floor Area Required: 1.5 m x 1 m.
Instruments, Laboratory wares and Chemicals required for analysis as per the system adopter

Technical Details
Reactor: Material SS, Capacity (1-2) Ltrs.
Agitator: Variable speed with speed control facility from 0 150 RPM.
Impeller: 4 square bladed (1 No.), Material- Stainless Steel.
Baffles: Detachable.
Piping: PVC.
Feed Tank (2Nos.): Material Stainless Steel, Capacity 20 Ltrs. Each
Discharge Tank (1No.): Material PVC, Capacity 40 Ltrs.
Water Bath: Material Stainless Steel, Double wall, insulated with Ceramic Wool.
Heater: Nichrome wire Heater
Pumps (3Nos.): 2 Nos. (For Chemical), 1 No. (For hot water circulation).
