New Tension Meter Ltms Accuracy: 99.99 %

With years of experience and knowledge in this domain, we are involved in manufacturing, exporting and supplying a broad range of New tension meter LTMS in China, Nuevo Leon, Mexico.

Product Detail :
Tension Meter LTMS
Tension Meter LTMS

Product Description :

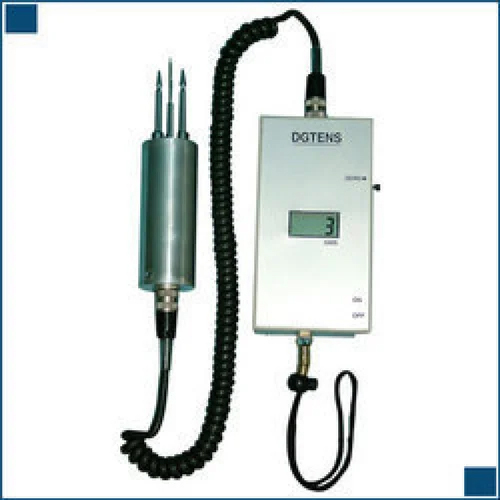

The LTMS Digital Tension Meter is a hand-held device which accurately measures the running as well as static tensions of a wide variety of process materials including yarns, fibers, wires, optical fibers, etc.

Product Feature :
It employs the "three-roller principle" of tension measurement.
High accuracy and high resolution. Digital display with no guessing or errors.
With 4 measurement unit for selection and conversion, N, kg, lb, g.
Current Value, Max. Value, Peak Value, Min Value can be displayed at the same time.
With 10 minutes auto power off and manual power off.
The Meter takes 62 tension measurements per second and displays the average of these measurements over a user-selected interval of 0.5, 1.0, 2.0 or 4.0 seconds, the Display Update Rate.
With data output function. Measurement data can be transmitted to computer by USB cable or Bluetooth adapter for various analysis.

Product Parameters :
Model
LTMS-200, LTMS-500, LTMS-1K, LTMS-2K, LTMS-5K, LTMS-10K, LTMS-20K,
LTMS-50K.

Tension Range : 0~0.2kgf, 0~0.5kgf, 0~1.0kgf, 0~2.0kgf, 0~5.0kgf, 0~10.0kgf, 0~20.0kgf, 0~50.0kgf, 0~200gf, 0~500gf, 0~1000gf, 0~2000gf, 0~5000gf, 0~1.96N, 0~4.9N, 0~9.8N, 0~19.6N, 0~49N, 0~98N, 0~196N, 0~490N, 0~0.44Lbf, 0~1.1Lbf, 0~2.2Lbf, 0~4.4Lbf, 0~11Lbf, 0~22Lbf, 0~44Lbf, 0~110Lbf.
Resolution : 0.001kgf, 0.001kgf, 0.001kgf, 0.001kgf, 0.01kgf, 0.01kgf, 0.01kgf, 0.01kgf,
1gf, 1gf, 1gf, 1gf, 1gf, 0.001N, 0.001N, 0.001N, 0.01N, 0.1N, 0.1N, 0.1N, 0.1N, 0.001Lbf, 0.001Lbf, 0.001Lbf, 0.001Lbf, 0.01Lbf, 0.1Lbf, 0.1Lbf, 0.1Lbf
Accuracy : A 1.0% or better
A 1.5% or better
Unit : kgf, gf, N, Lbf
Measuring PrincipleStrain gauge
Measuring Frequency : 16 msec (62.5 samples/sec)
Sensing Roller : Deflection of Sensing Roller (max.) 0.2mm
Overload Capacity : 150% of Full Scale
Temperature CoefficientZero : less than +0.3% FS/A C Span: less than +0.01% FS/A C
Display : Blue Back light LCD
Display Update Rate : 0.5, 1.0, 2.0 or 4.0 seconds, dip-switch selectable
Memory System : Current Value, Max. Value, Peak Value, Min Value
Over range Indicator : Buzzer Alarm
Power Off10 Minutes Auto Power Off, Manual Power Off
Data Output : USB, Bluetooth
