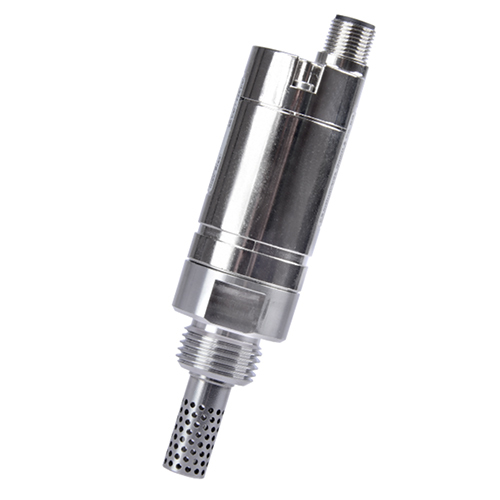

Omt200 Moisture Transmitter

We are a very leading name of the market for manufacturing and exporting of OMT200 Moisture Transmitter to our patrons with the following details in Shenzhen, Guangdong, China:

Measurement range : 0-1 aw
Accuracy : (including non-linearity, hysteresis and repeatability)
0 ... 0.9A 0.03
0.9 ... 1.0A 0.05
Response time in oil flow (typical) : <3min (dry-wet)
Moisture : Calculated moisture content in ppm for mineral transformer oil
Temperature Accuracy at +20a (+68a ) : A 0.3a (0.54a )

Operating Environment
Operating temperature : -40 ... +60a (-40 ... +140 a )
Oil temperature : -40 ... +80 a (-40 ... +176a )
Pressure range:up to 20 bar
Oil flow : some flow recommended

Outputs
Digital outputs : RS-485/RS232

General
Housing material
Metal : AISI 316L
Weight : 220g
Total weight : 350g
Protection grade : IP66
Mechanical connections with bonded seal ring (washer)
metal version : G 1/2'' ISO or NPT 1/2''
Supply voltage : DC24VA 20%
Supply current : <40mA
Package size : 172*117*53mm
Cable specification : M8 4 cores shielded 2m
Standard applied : IEC61010-1

Features/Benefits:
Continuous and measurement of moisture in oil
Measures in lubrication, hydraulic and transformer oils
Excellent pressure and temperature tolerance
Measures water activity - ppm-calculation available for transformer oil
Small size, easy to integrate
Convenient local & remote calibration
IEC61010-1 traceable calibration (certificate included)
