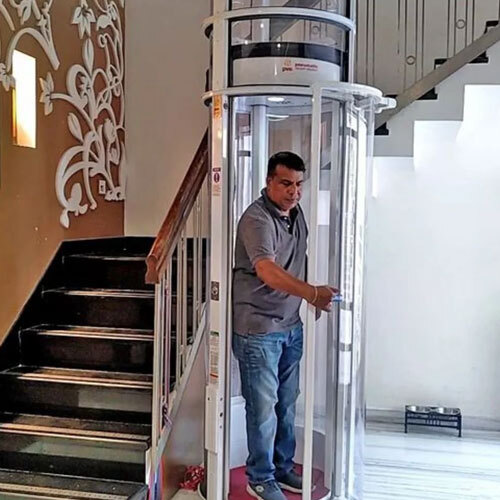

Pneumatic Vacuum Elevator

This Elevator is suitable for 2 passengers for application up to G+2 and does not require any head room or pit room and can be aesthetically incorporated in to the interior of the house. This Elevator does not require any civil structure and can be installed on the finished floor of the house. Our company Celcius systems has installed more than 200 elevators in Andhra Pradesh. This elevator has become extremely successful due to its ease of installation maintenance and excellent after sales service and also due to the fact that it can be installed in the existing bungalows.

Product Pneumatic Vacuum Elevator G+2 Specifications:
Capacity : 150 Kgs
Motor Power : 3.7 kw
Power Supply : 17A 230 Volts Single Phase
Speed : 0.15 Meters/second
Head Unit : Split Head Unit connected with 4a CPVC Pipes 2noa
Polycarbonate sheet : clear
Over load device : In Built
Car cabin height: 2000mm
Top head cylinder height: 2400mm
Door position :Can be in line or rotated in 90A or 180A
Number of stops: up to 3 (G+2)
Safty feature: Automatically comes to ground floor in case of a power failure during operation
Size: External cylinder 933mm and cabin height:20
