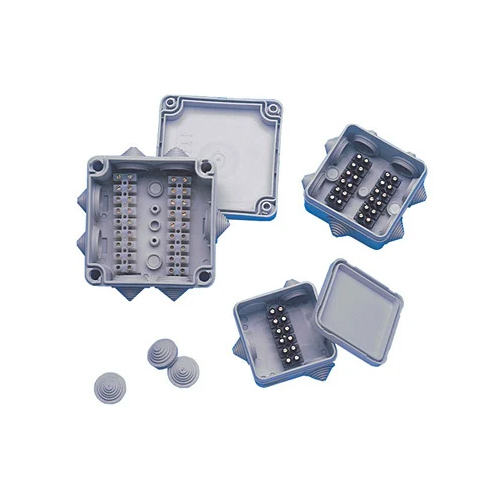

Polyester Enclosures (Junction Boxes)

Polyester Enclosures (Junction Boxes) are made of glass fibre reinforced polyester has been designed to satisfy the highest standard. Polyester enclosures are suitable to use where in high robustness & chemical resistance area. Its main applications are in the Electrical, mechanical engineering, ship building, electroplating & petrochemical industries.We offer premium quality ABS Enclosures (Junction Boxes) that is manufactured from quality raw materials to ensure its durability and utility. These are quality tested on well defined parameters before being delivered to our clients. We also meet customized requirement and offer our range at industry leading prices.

Technical Specifications

Material


Glass fibre reinforced polyester

Colour


RAL 7001 (Grey), RAL 9005 (Black)

Ingress Protection


IP 67/ DIN EN 60529

Temperature Range


CR (chloroprene) seal 40 A A C to 100A A C

Flammability:


V0 / self-extinguishing, UL 94

Impact Resistance


7 Joule to EN 60079-0

Surface Resistance


>1012 Ohm to IEC 60093



Polyester Enclosures (Junction Boxes)

VS-785PS


75 x 80 x 55 mm

VS-787PS


75 x 80 x 75 mm

VS-7115PS


75 x 110 x 55 mm

VS-7117PS


75 x 110 x 75 mm

VS-7165PS


75 x 160 x 55 mm

VS-7167PS


75 x 160 x 75 mm

VS-12129PS


120 x 122 x 90 mm

VS-12229PS


120 x 220 x 90 mm

VS-16169PS


160 x 160 x 90 mm

VS-16269PS


160 x 260 x 90 mm

VS-252516PS


250 x 255 x 160 mm

VS-404012PS


405 x 400 x 120 mm
