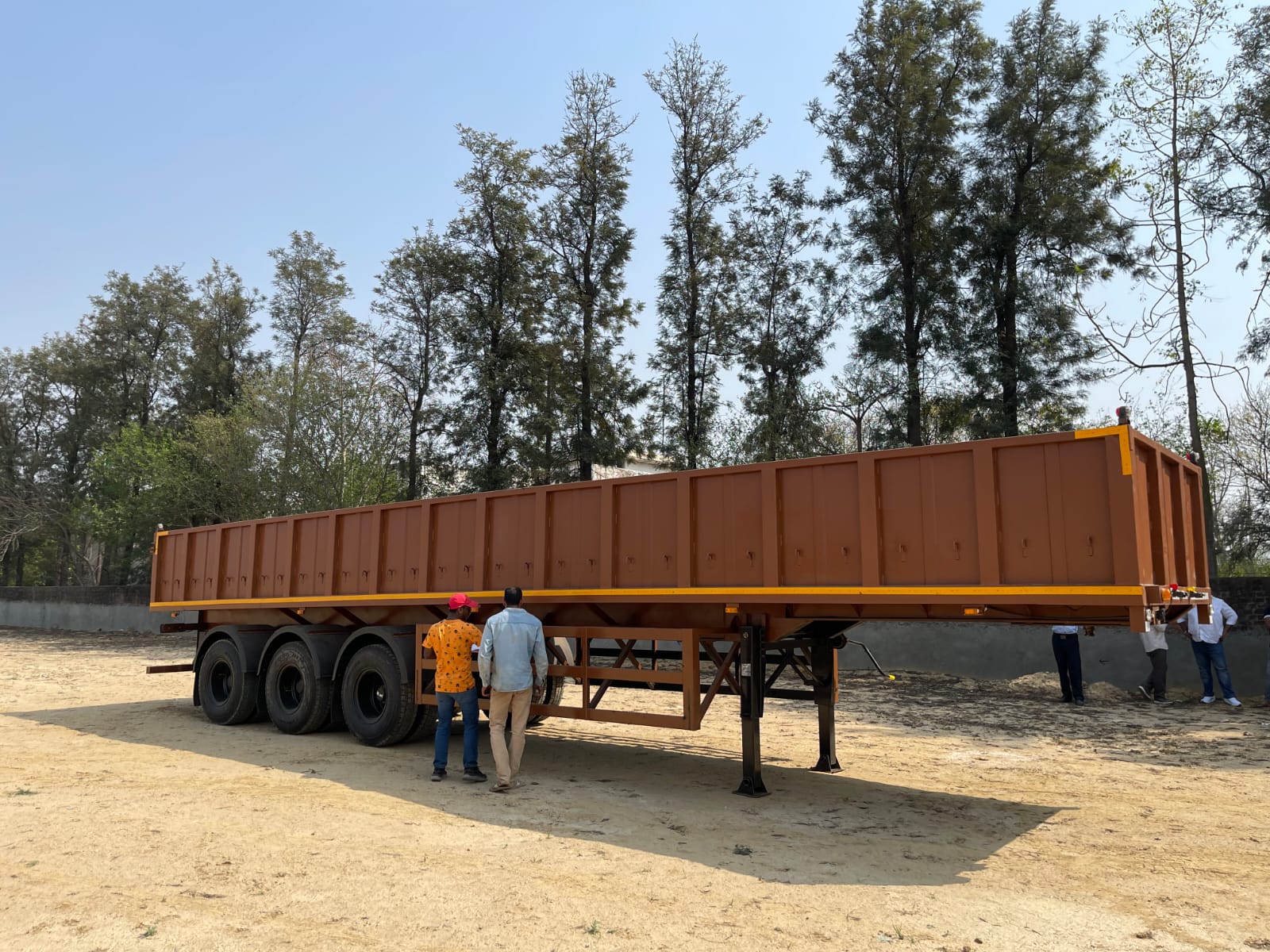

Tip Trailer By Ms Engineering Works

Product Description for Tip TrailerManufacturer: MS Engineering WorksLocation: Sonipat, HaryanaApproval: ICAT ApprovedEstablishment: 1980FeatureSpecificationChassis- Formed I Beam - 10/10/18, ladder-type construction made with high-strength steel BSK46. - IS 2062 formed beam 500 SAW welded.- Ladder-type construction with cross members, ensuring maximum load-bearing capacity, low unladen weight, torsional stability, and structural rigidity.- Factory manufactured byMS Engineering Works.Tipping Body Specifications- 4/5 Stage cylinder FE/FC type.- Tipper Valve: Hyva/Hypratek/Hidromas 3 DHMP-170.- Cabin-fitted air control valve (pneumatically controlled) for PTO engaging and Tipper Valve.- 178-liter capacity oil tank with breather, return line filter, all hoses, and fittings.- Body clamp: HYFIX.- Hydraulic pump: 82 LPM gear pump.- Hydraulic oil: Shell/Castrol.Platform- Constructed with 4/5/6 mm Thk IS 2062 sheet.- Strengthened and reinforced to the body runner for durability.Body Panels- Side and rear door panels made of IS 2062 4mm/5mm Thk sheet.- Headboard made of IS 2062 5mm Thk sheet.- Panels strengthened and reinforced with folded stiffeners.King Pin- Bolted 2" king pin, equivalent to IS: 6763 Part I for secure coupling.Brakes- Twin-line air brake system coupled to the tractor's brake system.- Trailer brakes actuated from tractor.- T 24 brake chambers on all axles- Parking brakes manually actuated.Electrical System- 24 V DC electrical system.- Includes tail lamp, brake lamp, and direction indicator lamps fitted at the rear.- Side marker lamps provided on both sides.Why Choose Us?Proven Expertise: Over four decades of excellence in trailer manufacturing.High-Strength Materials: Durable construction with IS 2062 steel and advanced hydraulic systems.Precision Engineering: Built for maximum load capacity, stability, and performance.Safety First: Advanced braking and electrical systems ensure operational safety.For inquiries and orders, contactMS Engineering Works, Sonipat, Haryana.
