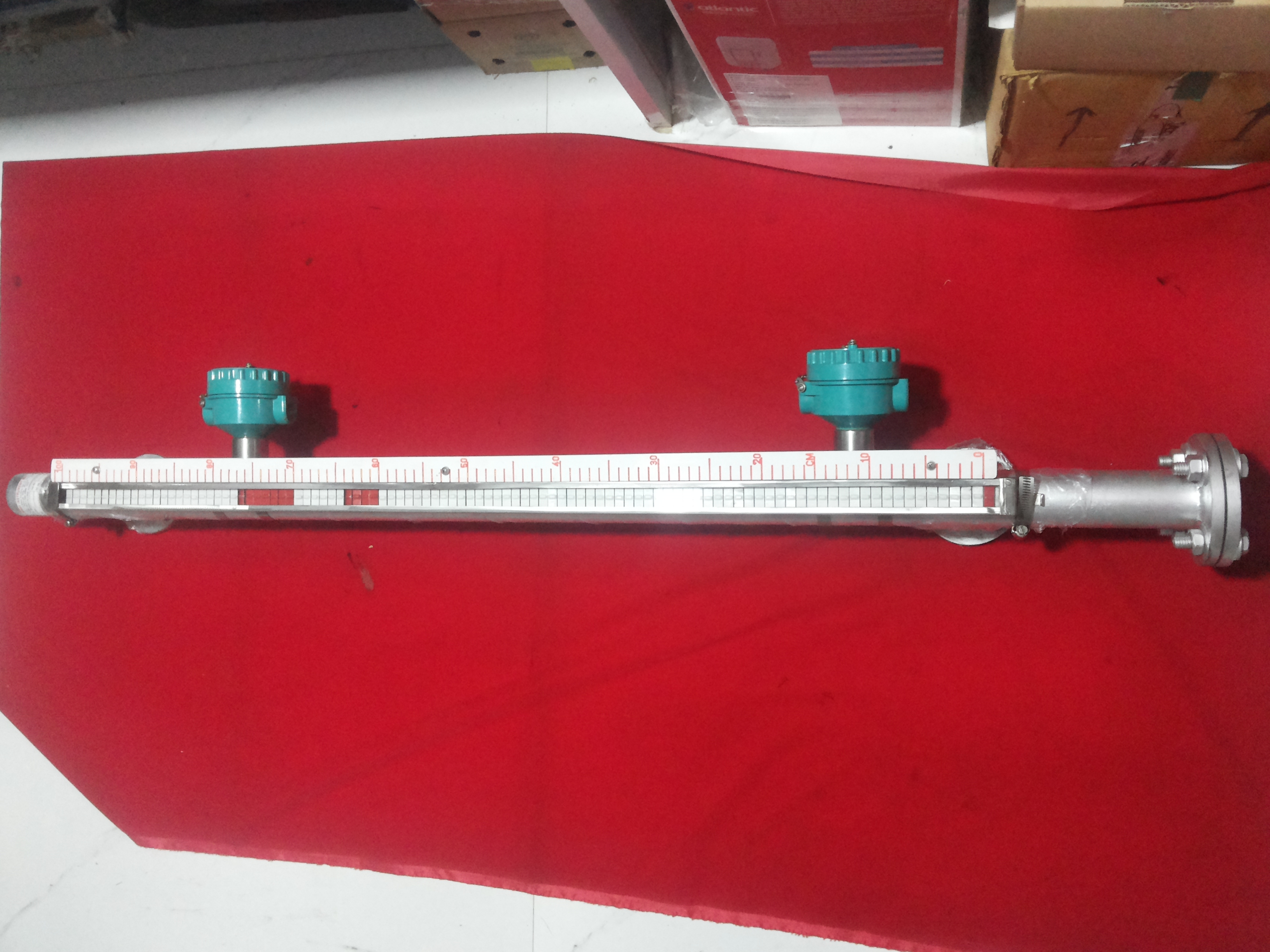

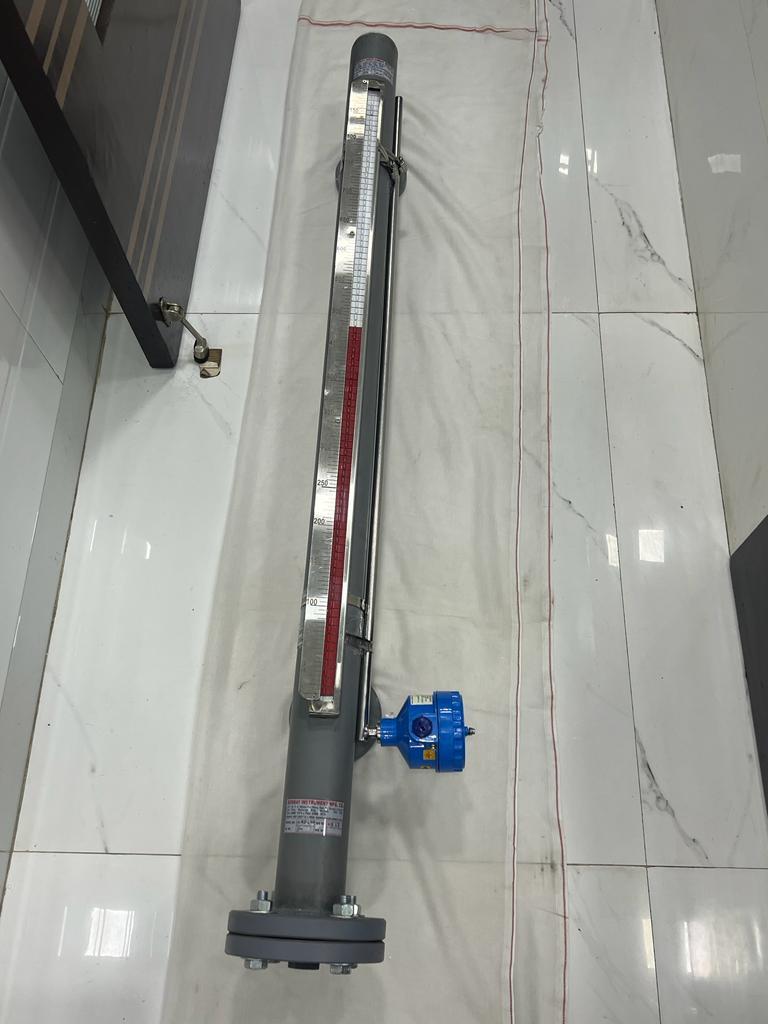

Top Mounted Magnetic Level Indicator - Operating Temperature: 90 Celsius (Oc)

Model No.: 09 - RI
Type :Magnetic
Mounting: Top
Top Chamber: SS.304/316/PP etc Pipe flared and flanged at Top end and having flanged
cover at bottom end
Guide Pipe: A perforated G.I/SS.304/316/PP etc. Pipe
Flange: 4 /6NB, ASA 150 C.S./any MOC Flange
Test Pressure: 5 Kg/CM-2 / high Pressure as per requiest
Float: SS.316./any moc float with SS.304 stem and cartridge made out of SS./anymoc
having Powerful permanent magnet inside it.
All wetted Parts: SS.304/316/PP /GI./Any MOC
By-pass Pipe: SS.304/316/PP /GI./Any MOC
OP.Temp.: AMB. / Pl. confirm
OP. Pressure: AMB. /Pl. confirm
Scale: Black Anodised Aluminium scale marked in CMS Least count 5 mm
Indication: BI-COLOUR Magnetic PP. Roller will be in
Powder coated Al. housing with transparent acrylic Front.
Protection : Al. powder Coated housing with Roller
Liquid : Water / Pl. mention if other liquid.
Tank Depth : Pl. mention
Nozzle length : Pl. mention
Make : BIMCO- Bombay Instrument
