Ultrasonic Water Flow Meter - Accuracy: +/-1 %

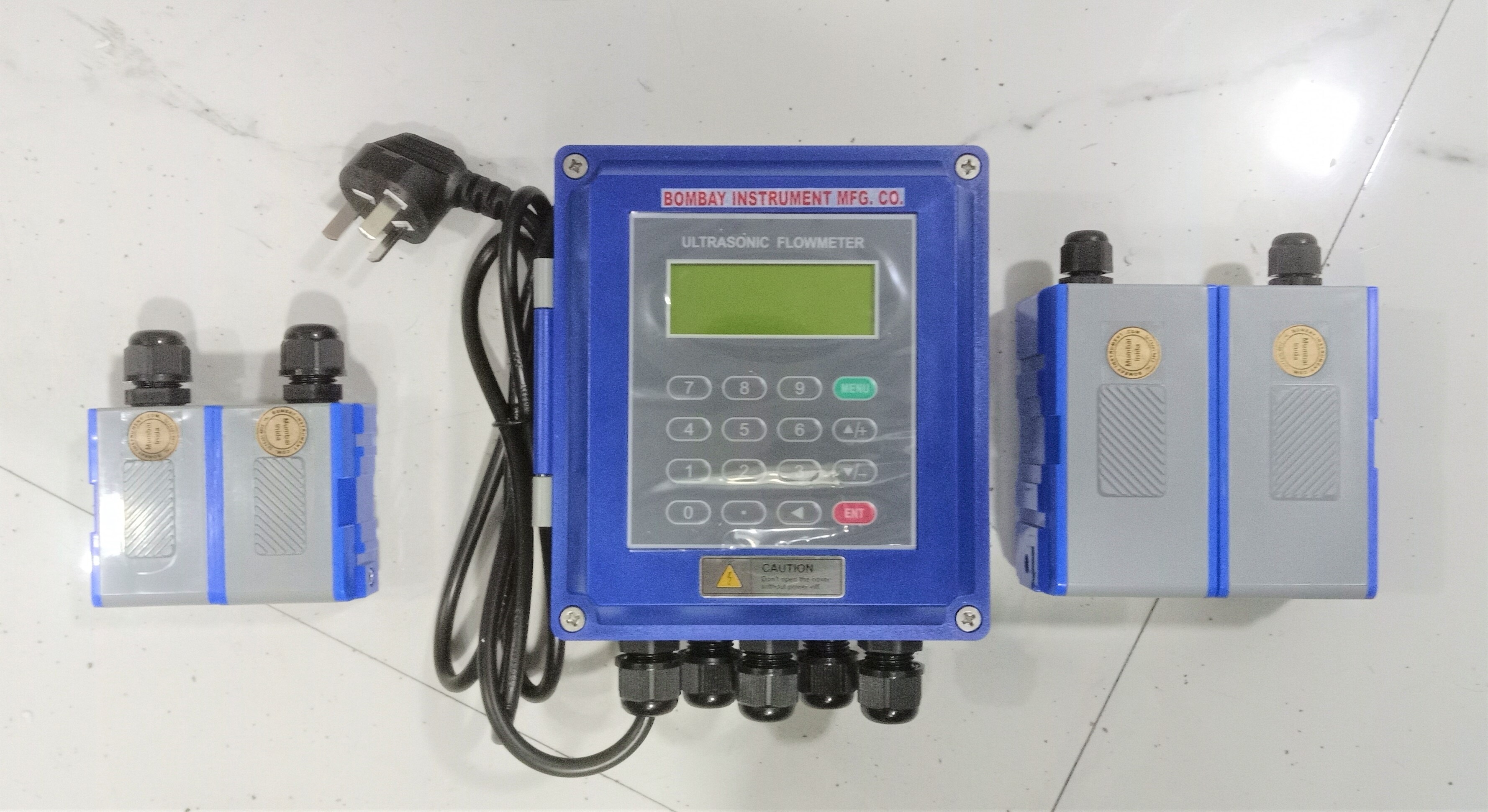

WALL Mount Ultrasonic Flowmeter
For more information, You can see the working of our flow meter on YouTube: https://youtu.be/36oK54cw9sc
MODEL NO. : UF-NWL-10
Indicator mounting : Wall / Panel/Pipe
Pipe Diameter : According to Sensor Type
Sensor : S, M & L Type (Standard : M-Type)
Sensor suitable for Pipe: S Type DN15mm to DN100mm -(Optional )
M Type DN50mm to DN700mm- Will provide
L Type DN300mm to DN6000mm - (Optional )
Pipe Material : Steel, stainless steel, cast iron, copper, cement pipe
PVC, Aluminum, Glass steel product, Liner is allowed
Clamp : Standard for DN500, Additional on extra cost
Velocity range : 0.1 to 5 m/s
Accuracy : +/-1%
Transducer : Water - Immersible, water depth less than 1m
Converter Protection class : IP67
Sensor Protection : IP68 as per IS13947
Power Supply : Ac85-264V or Dc8-36V - (Optional)
Power Consumption : 1.5W
Display : Flow rate, Totaliser, Velocity etc.
Output : 4-20mA
Make : BIMCO - Bombay Instrument
Qty : 01 Set.
Other details as Per Attached file.

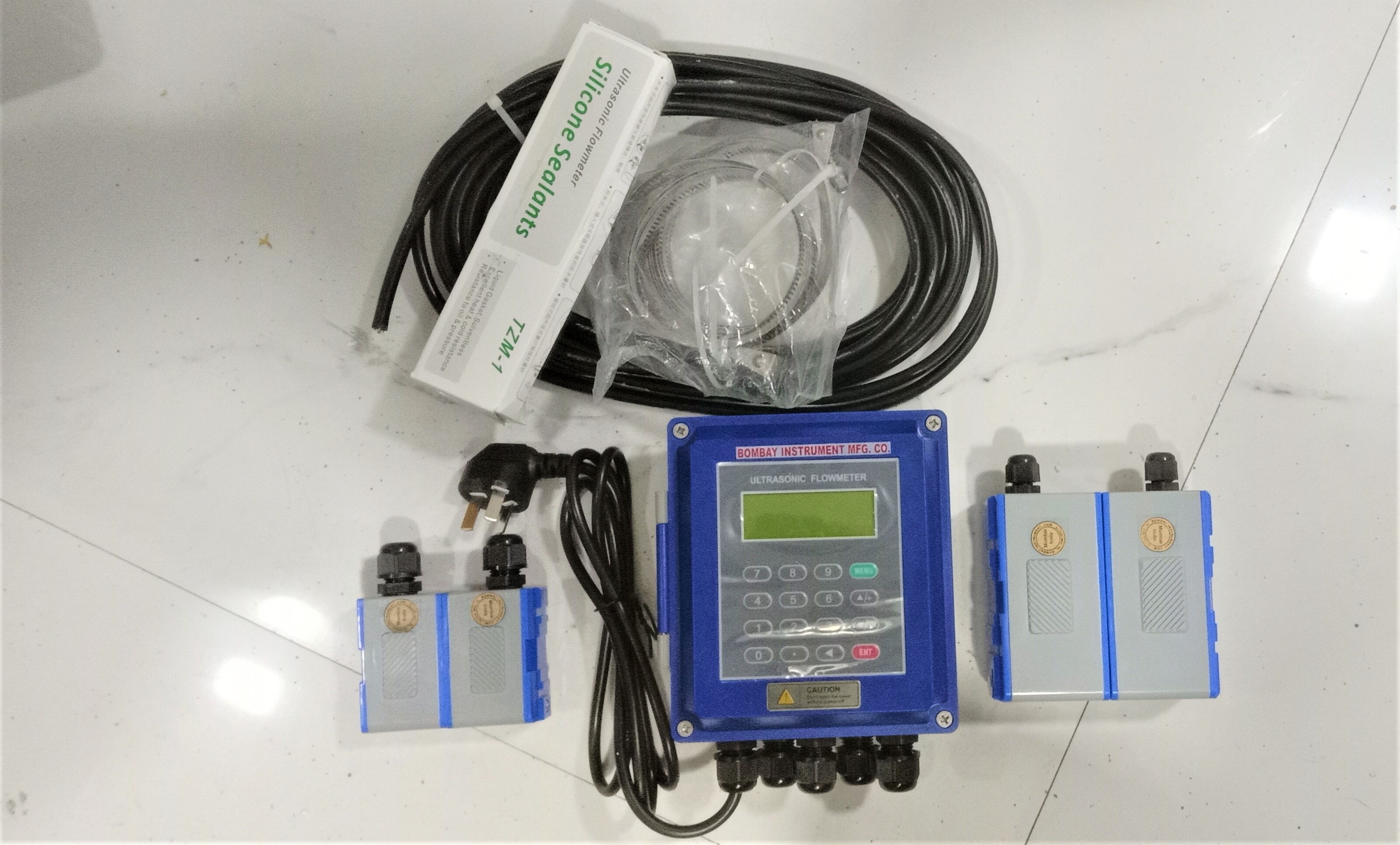

Flowmeter have complete set as follows.
No.DescriptionQuantity
1Main Engine/Meter1
2Single Transmission Lines(5mx2)
3M- type Sensor1
4ChargerNA.
5Clamp Fixture2
65 M TapeNA.
7Ultrasonic Flow Meter Coupling Agent (Sensing Gel)1
8KeyNA
9Users Manual1
10Quality Certificate1
11Packing List1
Certificate : We will provide Test & Guarantee Certificate and Our own calibration
report with copy of master/reference flowmeter Calibration certificate Traceable to NABL
Accredited Lab. Reference Flowmeter calibration certificate Valid till 2025.
