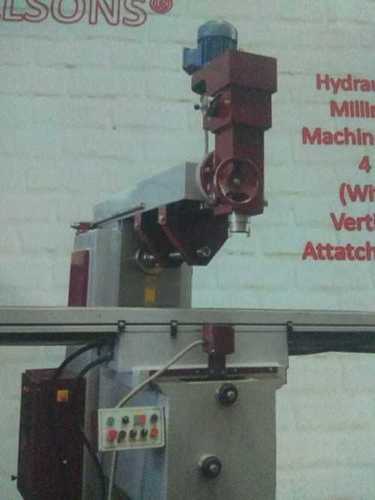

Universal Milling Machine (Cf-2570vh/vhu)

We are engaged in manufacturing and supplying excellent quality Universal Milling Machine (CF-2570VH/VHU) to our valuable clients.
Models (CF-2570VH/VHU)
Table
Working surface of table 250mmA 1100mm
Longitudinal travel 700mm
Transfer travel 280mm
Vertical travel 485mm
Range of longitudinal feed speed(mm) 30~825mm/min (9Steps)
Range of longitudinal rapid speed(mm) 1300mm/min
Table will swivel(R & L) 30A
Vertical Spindle
Spindle nose N.T.#40
Spindle speed(8 steps)R.P.M 210-3440(60Hz) 170-2860(50Hz)
Distance from spindle end to table top 80-565mm
Distance from spindle center to column 150-500mm
Vertical travel of quill surface 125mm
Swiveling angle of head(right & left) 90A
Cross travel of ram 350mm
Horizontal rotation angle or ram 360A
Horizontal main spindle
Range of spindle speeds(6 speeds)(R.P.M) 60c/s(50~1180)50c/s(40~980)
Taper of spindle bore NT40#
Spindle center to table 0~485mm
Spindle center to over arm bottom 115mm
Motor
Horizontal milling(Vertical milling head) 3HP
Table longitudinal feed 1/2HP
Coolant pump 1/8HP
Net weight(approx) 1200kg
Gross weight 1300KG
Dimensions of packing case 1190A 1720A 1650mm
Standard equipment
Coolant system 1 set.
Cutter arbor 1 pc.
Cutter Sleeve 1 set.
Draw bar 1 pc.
Tool box with adjusting tool 1 set.
Optional equipment
Coolant tray 1 set.
