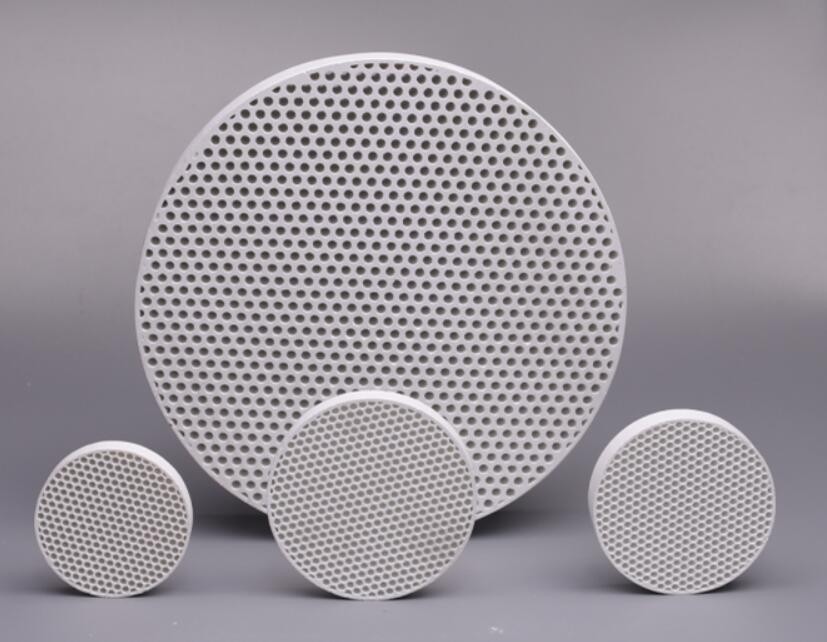

Honeycomb Ceramic Filter For Filtration Of Cast Iron Diameter: 40-500 Millimeter (Mm)
Price: null USD ($)
Get Latest Price
Minimum Order Quantity :
2000 Piece
In Stock
Product Specifications
| Outlet Diameter | 40-500 Millimeter (mm) |
| Usage | Put the filter into casting system |
| Filter Media | Other |
| Material | Other |
| Pressure | 1.2 mpa, 1.2 mpa |
| Application | filter for casting |
| Product Type | mass product |
| Color | white |
| Width | 40-500 Millimeter (mm) |
| Filter Rating | 2-45kg/s |
| Type | Industrial Depth Filter Cartridge |
| Weight | 50-6000 Grams (g) |
| Warranty | Three years |
| Diameter | 40-500 Millimeter (mm) |
| Size | 40-500 |
| Shape | Round ,square ,custom geometric shapes |
| Inlet Diameter | 40-500 Millimeter (mm) |
| Efficiency | 80-90% |
| Cartridge Style | Double Open End |
| Length | 40-500 Perch |
| Pore Size | 10-40ppi |
| Height | 12-50 Millimeter (mm) |
| Packaging Details | carton and pallet |
| Main Domestic Market | All India |
| Payment Terms | Others, Days after Acceptance (DA), Telegraphic Transfer (T/T), Western Union, Letter of Credit at Sight (Sight L/C), Delivery Point (DP), Letter of Credit (L/C) |
| Sample Available | 1 |
| Sample Policy | Within a certain price range free samples are available |
| Delivery Time | 15-25 Days |
| Main Export Market(s) | South America, North America, Africa, Western Europe, Eastern Europe, Australia, Asia, Central America |
| Supply Ability | 4000000 Per Year |
| FOB Port | TIANJIN SHANGHANG ,CHINA |
| Certifications | Size and Specifications: Due to their basic filtering capacity and high heat capacity,theseA Ceramic Honeycomb StrainerA are used rather in smaller dimensions and thickness for grey cast iron castings. TheA Ceramic HoneycombA StrainerA capture particular slags and make mould filling more homogeneous and uniform, thus increasing purity of the cast metal and eliminating sand mixture erosion during casting. Class Dimension (mm) Hole Size (mm) Wall Thickness (mm) Heat Transfer Area (m2/m3) Porosity (%) Ceramic Honeycomb Filter with Square Holes 40*40*12 1.3 0.45 1580 51.3 40*40*12 1.92 0.6 1190 57 50*50*12 1.3 0.45 1580 51.3 50*50*12 1.92 0.6 1190 57 55*55*12 1.3 0.45 1580 51.3 55*55*12 1.92 0.6 1190 57 66*66*12 1.3 0.45 1580 51.3 66*66*12 1.92 0.6 1190 57 Ceramic Honeycomb Filter with Round Holes 40*40*10 2.3 1.0 758 43.6 40*40*12.5 2.3 1.0 758 43.6 50*50*12.5 2.3 10. 758 43.6 55*55*10 2.0 1.0 1190 40 66*66*12.5 2.3 1.0 758 43.6 75*75*15 2.3 1.0 758 43.6 81*81*12 2.3 1.0 758 43.6 81*81*15 2.3 1.0 758 43.6 100*100*20 3.5 1.0 590 51 132*132*20 5.0 1.2 438 57 Ceramic Honeycomb Filter with Triangle Holes 40*40*12 2 0.45 1395 40 50*50*12 2 0.45 1186 40 66*66*12 3 0.7 1186 52 75*75*12 3 0.7 1186 52 82*82*13 3 0.7 1186 52 100*100*15 3 0.7 1186 52 Application: Ceramic honeycomb filter is mainly used in metallurgy, foundry industry. When the molten liquid metal passes through the ceramic honeycomb channel, the debris, the slag and other inclusions are removed. Ceramic honeycomb filter improves the quality of molten metal flow. A stable and fast laminar molten metal flow prevents air from getting into the molten metal flow, molten metal getting oxidized and splashing out. ceramic honeycomb molten metal filter round Base on the case studying in recent years, the prescription and innovate the technique are adjusted to produce ceramic honeycomb filters with different specifications: A.Cordierite, Mullite, Zirconia mullite, Zirconia corundum filters for the highest temperature 1350 0C, 1500 0C, 1580 0C and 1650 0C A.Good thermal shock properties A.Uniform round hole, avoid small eddy and turbulence molten metal flow when metal liquid passing through A.Accurate extrusion die makes the quality of ceramic honeycomb filter extremely stable and consistency |
| GSTIN | 0% |
Company Details
Cangzhou Saifu Ceramic New Materials Co., LTD. is located in the guanting industrial park of Cangzhou city. Our company is a professional manufacturer that specializes in researching, developing, producing and selling. It has approved by ISO9001 quality system certification. Sefu company mainly produce and sell ceramic foam filter, honeycomb ceramic filter, foundry thermocouple, ceramic fiber products and etc. Its products are mainly used in iron casting, aluminum casting,steel casting, water treatment, air purification and other fields.
Technical innovation is the soul of the enterprise. Relying on technology center, using advanced management method, the company provides quality of casting materials to customers all over the world. It has made high quality brand of ceramic filters in china. The company has the self-management import and export rights, products have been exported to Western Europe, North America, the Middle East, Southeast Asia and other countries and regions.
We take pride in serving our customers. pursuing excellence, customer first " is the aim of the company. To create more economic benefit for clients is our goal.
Business Type
Exporter, Importer, Manufacturer, Supplier
Employee Count
300
Establishment
2013
Working Days
Monday To Friday
Payment Mode
Telegraphic Transfer (T/T)
Certification
ISO 9001:2015
