Ceramic Foam Filter - Round/square/custom Shapes, 40-500 Mm Diameter | 80-90% Efficiency, 10-40 Ppi Pore Size, 3-year Warranty

2000 Piece/Pieces

2000 Piece/Pieces

40-500 Millimeter (mm)

40-500 Millimeter (mm)

40-500 Millimeter (mm)

40-500 Millimeter (mm)

Three years

Three years

filter for casting

filter for casting

11-50 Millimeter (mm)

11-50 Millimeter (mm)

40-500 Millimeter (mm)

40-500 Millimeter (mm)

(40-500)*i 40-500i *i 11-50i

40-500

40-500 Millimeter (mm)

40-500 Millimeter (mm)

2-45kg/s

2-45kg/s

Yes

Yes

Western Union

Days after Acceptance (DA)

10-15 Days

15-25 Days

2000000 Per Year

800000 Per Year

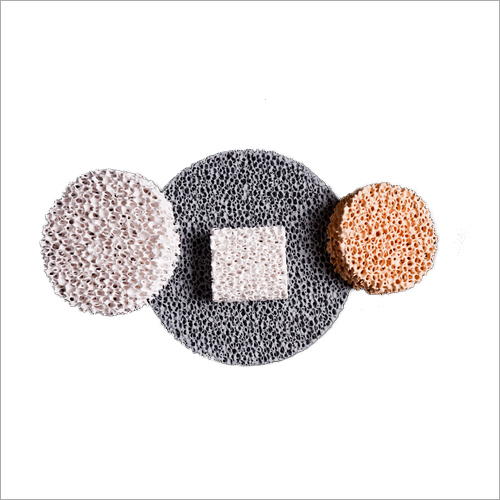

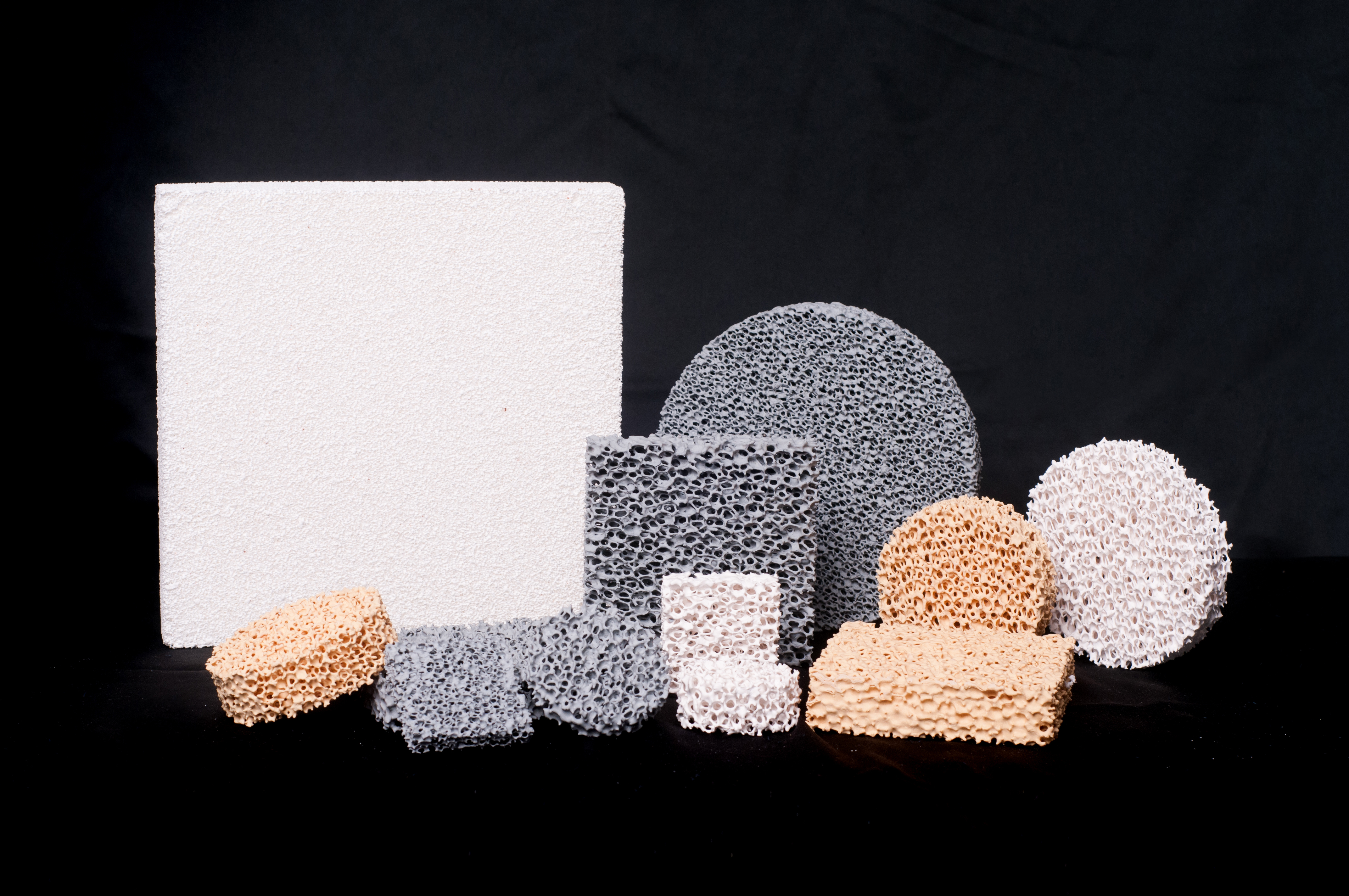

We can supply ceramic foam filters are as follows: 1.Silicon carbide ( SiC) is used as a distinctive element in the refractory mixture material to make foam filters. Gray in color, foam filter is a strong and durable foam filter, which can be used to purge and filter solution of ductile iron casting, grey iron and other iron casting. 2. Zirconia Ceramic Foam Filter is applied to purge and filter solution of steel high temperature metal such as steel alloy stainless steel etc.Typical application of zirconia ceramic foam filter is for in-mold, tundish, pouring cup or baffle-type filtration. 3. Alumina Ceramic Foam Filter is applied to purge and filter solution of aluminium and aluminium alloys. White in color alumina foam filter is made from high purity alumina (AI2O3). It has excellent ability to resist high thermal shock while maintaining efficient removal of impurities with continuous and thorough filtration. Advantage of Ceramic Foam Filters 1.Simplified and shorten gating system,increasing yield. 2.High strength without loose ceramic particles or powder 3.Remove tiny slag effectively and purify molten metal. 4.Three dimensional connected mesh structure and high porosity 5. Well-distributed molten metal and improve performance. 6. Quiet laminar flow of molten metal. 7.Smaller particles are captured on the filter cake created by the larger particles , finer particles are captured within the pores in the filter. Principle Of Using Filter: a c Set the filters as close as possible of the casting. a c Use simple gating system without dirt trap ( improve yield). a c The working area of filter should be 4a 6 times of the section of chocked flow in gating system to make sure that the pouring speed is not affected. a c Select the proper filters according to types of metal and pouring temperature. a c The higher porosity, the better filtration.

Physical properties and ApplicationsA A A A A A A A A A Physical Properties For Ceramic Foam Filter Material SIC AL ZR Color Grey Black White Yellow Pore Density 10-40 PPI 10-60 PPI 10-40 PPI Porosity 80%-90% 80%-90% 80%-90% Operating temperature (A C) a 1500 a 1100 a 1700 Bending Strength (MPa) a Y0.8 a Y0.6 a Y1.0 Thermal Shock Resistance(times/1100A C) 6 6 6 Applications Ductile cast iron ,Grey iron and other cast iron and nonferrous alloy Aluminum , Aluminum alloys and other non-ferrous alloy. Stainless steel ,Carbon steel and large cast iron . How To Choose Porosity Of Filter: a c The higher porosity, the better filtration. But too high porosity leads to low speed rate of metal. This is especially important for SG iron.Usually our recommendation are as belowi a c 10ppia for ductile iron, big grey iron, steel casting. a c 20ppia for grey iron, malleable cast-iron,non ferrous alloy casting. a c 30ppia for grey and malleable cast-iron, non ferrous alloy casting. How To Set Filter: The ceramic foam filter can be used in the filtration chamber of a gating system as well as for direct pouring on the filter. Filter is usually set above or below the sprue, runner, in pouring cup.
